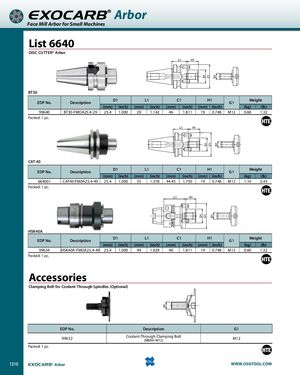

EXOCARB® Arbor Face Mill Arbor for Small Machines List 6640 DISC CUTTER® Arbor BT30 EDP No. Description D1 L1 C1 H1 G1 Weight (mm) (inch) (mm) (inch) (mm) (inch) (mm) (inch) (kg) (lb) 99640 BT30-FMOA25.4-29 25.4 1.000 29 1.142 46 1.811 19 0.748 M12 0.60 1.32 Packed: 1 pc. CAT 40 EDP No. Description D1 L1 C1 H1 G1 Weight (mm) (inch) (mm) (inch) (mm) (inch) (mm) (inch) (kg) (lb) 664001 CAT40-FM0A25.4-49 25.4 1.000 35 1.378 44.45 1.750 19 0.748 M12 1.10 2.43 Packed: 1 pc. HSK40A EDP No. Description D1 L1 C1 H1 G1 Weight (mm) (inch) (mm) (inch) (mm) (inch) (mm) (inch) (kg) (lb) 99634 HSK40A-FMOA25.4-49 25.4 1.000 49 1.929 46 1.811 19 0.748 M12 0.60 1.32 Packed: 1 pc. Accessories Clamping Bolt for Coolant-Through Spindles (Optional) EDP No. Description G1 99632 Coolant-Through Clamping Bolt(MBAH-M12) M12 Packed: 1 pc. 1310 EXOCARB® Arbor WWW.OSGTOOL.COM
