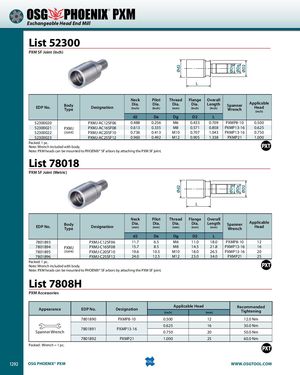

Ød2Ød2 ØDgØDg ØDaØDa ØD2ØD2 ® PXM Exchangeable Head End Mill List 52300 PXM SF Joint (Inch) L Neck Pilot Thread Flange Overall EDP No. BodyType Designation Dia. (Inch) Dia.(Inch) Dia.(mm) Dia.(Inch) Length(Inch) SpannerWrench ApplicableHead(inch) d2 Da Dg D2 L 52300020 PXMJ-AC12SF06 0.488 0.256 M6 0.433 0.709 PXMP8-10 0.500 52300021 PXMJ PXMJ-AC16SF08 0.613 0.335 M8 0.571 0.858 PXMP13-16 0.625 52300022 (Joint) PXMJ-AC20SF10 0.736 0.413 M10 0.707 1.043 PXMP13-16 0.750 52300023 PXMJ-AC25SF12 0.960 0.492 M12 0.905 1.338 PXMP21 1.000 Packed: 1 pc. Note: Wrench included with body. Note: PXM heads can be mounted to PHOENIX® SF arbors by attaching the PXM SF joint. List 78018 PXM SF Joint (Metric) L Neck Pilot Thread Flange Overall EDP No. BodyType Designation Dia. (mm) Dia.(mm) Dia.(mm) Dia.(mm) Length(mm) SpannerWrench ApplicableHead d2 Da Dg D2 L 7801893 PXMJ-C12SF06 11.7 6.5 M6 11.0 18.0 PXMP8-10 12 7801894 PXMJ PXMJ-C16SF08 15.7 8.5 M8 14.5 21.8 PXMP13-16 16 7801895 (Joint) PXMJ-C20SF10 19.6 10.5 M10 18.0 26.5 PXMP13-16 20 7801896 PXMJ-C25SF12 24.0 12.5 M12 23.0 34.0 PXMP21 25 Packed: 1 pc. Note: Wrench included with body. Note: PXM heads can be mounted to PHOENIX® SF arbors by attaching the PXM SF joint. List 7808H PXM Accessories Appearance EDP No. Designation Applicable Head Recommended(inch)(mm)Tightening 7801890 PXMP8-10 0.500 12 12.0 Nm 0.625 16 30.0 Nm 7801891 PXMP13-16 Spanner Wrench 0.750 20 50.0 Nm 7801892 PXMP21 1.000 25 60.0 Nm Packed: Wrench = 1 pc. 1292 OSG PHOENIX® PXM WWW.OSGTOOL.COM
