Общий каталог OSG 2018 - 2019 - страница 1268

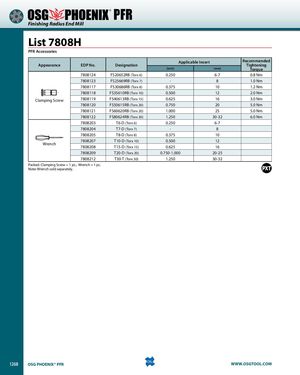

® PFR Finishing Radius End Mill List 7808H PFR Accessories Applicable Insert Recommended Appearance EDP No. Designation Tightening (inch) (mm) Torque 7808124 FS20652RB (Torx 6) 0.250 6-7 0.8 Nm 7808123 FS25669RB (Torx 7) - 8 1.0 Nm 7808117 FS30686RB (Torx 8) 0.375 10 1.2 Nm 7808118 FS35610RB (Torx 10) 0.500 12 2.0 Nm Clamping Screw 7808119 FS40613RB (Torx 15) 0.625 16 3.0 Nm 7808120 FS50615RB (Torx 20) 0.750 20 5.0 Nm 7808121 FS60620RB (Torx 20) 1.000 25 5.0 Nm 7808122 FS80624RB (Torx 30) 1.250 30-32 6.0 Nm 7808203 T6-D (Torx 6) 0.250 6-7 7808204 T7-D (Torx 7) - 8 7808205 T8-D (Torx 8) 0.375 10 7808207 T10-D (Torx 10) 0.500 12 Wrench 7808208 T15-D (Torx 15) 0.625 16 7808209 T20-D (Torx 20) 0.750-1.000 20-25 7808212 T30-T (Torx 30) 1.250 30-32 Packed: Clamping Screw = 1 pc.; Wrench = 1 pc. Note: Wrench sold separately. 1268 OSG PHOENIX® PFR WWW.OSGTOOL.COM
