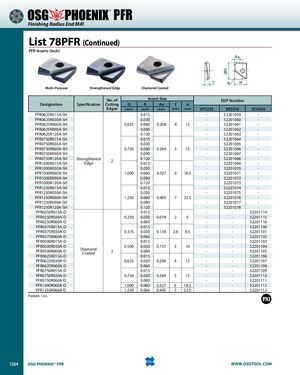

Общий каталог OSG 2018 - 2019 - страница 1264

ØDR ® PFR Finishing Radius End Mill List 78PFR (Continued) PFR Inserts (Inch) Aa T H Multi-Purpose Strengthened Edge Diamond Coated No. of Insert Size EDP Number Designation Specification Cutting D R Aa T H Edges (inch) (inch) (inch) (mm) (mm) XP3225 XP3310 XC4505 PFR0625R015A-SH 0.015 - 52201059 - PFR0625R030A-SH 0.030 - 52201060 - PFR0625R060A-SH 0.625 0.060 0.208 4 12 - 52201061 - PFR0625R090A-SH 0.090 - 52201062 - PFR0625R120A-SH 0.120 - 52201063 - PFR0750R015A-SH 0.015 - 52201064 - PFR0750R030A-SH 0.030 - 52201065 - PFR0750R060A-SH 0.750 0.060 0.264 5 15 - 52201066 - PFR0750R090A-SH 0.090 - 52201067 - PFR0750R120A-SH StrengthenedPFR1000R015A-SHEdge2 0.1200.015 - 52201068 --52201069- PFR1000R030A-SH 0.030 - 52201070 - PFR1000R060A-SH 1.000 0.060 0.327 6 18.5 - 52201071 - PFR1000R090A-SH 0.090 - 52201072 - PFR1000R120A-SH 0.120 - 52201073 - PFR1250R015A-SH 0.015 - 52201074 - PFR1250R030A-SH 0.030 - 52201075 - PFR1250R060A-SH 1.250 0.060 0.405 7 23.5 - 52201076 - PFR1250R090A-SH 0.090 - 52201077 - PFR1250R120A-SH 0.120 - 52201078 - PFR0250R015A-D 0.015 - - 52201114 PFR0250R030A-D 0.250 0.030 0.078 2 5 - - 52201115 PFR0250R060A-D 0.060 - - 52201116 PFR0375R015A-D 0.015 - - 52201100 PFR0375R030A-D 0.375 0.030 0.130 2.6 8.5 - - 52201101 PFR0375R060A-D 0.060 - - 52201102 PFR0500R015A-D 0.015 - - 52201103 PFR0500R030A-DPFR0500R060A-DPFR0625R015A-DDiamondCoated0.500 0.030 0.157 3 1020.0600.015--- - 52201104-52201105-52201106 PFR0625R030A-D 0.625 0.030 0.208 4 12 - - 52201107 PFR0625R060A-D 0.060 - - 52201108 PFR0750R015A-D 0.015 - - 52201109 PFR0750R030A-D 0.750 0.030 0.264 5 15 - - 52201110 PFR0750R060A-D 0.060 - - 52201111 PFR1000R060A-D 1.000 0.060 0.327 6 18.5 - - 52201112 PFR1250R060A-D 1.250 0.060 0.405 7 23.5 - - 52201113 Packed: 1 pc. 1264 OSG PHOENIX® PFR WWW.OSGTOOL.COM
