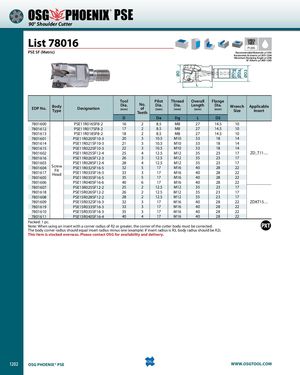

Общий каталог OSG 2018 - 2019 - страница 1202

ØD ØDg ØDa ØD2 ® PSE 90° Shoulder Cutter List 78016 SPEEDFEED P1205 PSE SF (Metric) Recommended Materials: p1205 Accessories & Inserts: p1203-1204 Maximum Ramping Angle: p1206 SF Arbors: p1280-1282 L Tool Pilot Thread Overall Flange EDP No. BodyType Designation Dia. No. Dia.(mm)of(mm)TeethDia. Length Dia. Wrench Applicable(mm)(mm)(mm)SizeInsert D Da Dg L D2 7801600 PSE11R016SF8-2 16 2 8.5 M8 27 14.5 10 7801612 PSE11R017SF8-2 17 2 8.5 M8 27 14.5 10 7801613 PSE11R018SF8-2 18 2 8.5 M8 27 14.5 10 7801601 PSE11R020SF10-3 20 3 10.5 M10 33 18 14 7801614 PSE11R021SF10-3 21 3 10.5 M10 33 18 14 7801615 PSE11R022SF10-3 22 3 10.5 M10 33 18 14 7801602 PSE11R025SF12-4 25 4 12.5 M12 35 23 17 ZD_T11… 7801616 PSE11R026SF12-3 26 3 12.5 M12 35 23 17 7801603 PSE11R028SF12-4 28 4 12.5 M12 35 23 17 78016047801617ScrewFitHeadPSE11R032SF16-5PSE11R033SF16-332 5 17 M16 40 28 2233317M16402822 7801605 PSE11R035SF16-5 35 5 17 M16 40 28 22 7801606 PSE11R040SF16-6 40 6 17 M16 40 28 22 7801607 PSE15R025SF12-2 25 2 12.5 M12 35 23 17 7801618 PSE15R026SF12-2 26 2 12.5 M12 35 23 17 7801608 PSE15R028SF12-2 28 2 12.5 M12 35 23 17 7801609 PSE15R032SF16-3 32 3 17 M16 40 28 22 ZDKT15… 7801619 PSE15R033SF16-3 33 3 17 M16 40 28 22 7801610 PSE15R035SF16-3 35 3 17 M16 40 28 22 7801611 PSE15R040SF16-4 40 4 17 M16 40 28 22 Packed: 1 pc. Note: When using an insert with a corner radius of R2 or greater, the corner of the cutter body must be corrected. The body corner radius should equal insert radius minus one (example: if insert radius is R3, body radius should be R2). This item is stocked overseas. Please contact OSG for availability and delivery. 1202 OSG PHOENIX® PSE WWW.OSGTOOL.COM
