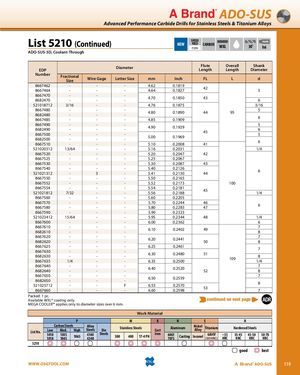

Общий каталог OSG 2018 - 2019 - страница 119

ADO-SUS Advanced Performance Carbide Drills for Stainless Steels & Titanium Alloys List 5210 (Continued) NEW SPEED FEED P299 CARBIDE WXL 30˚ ADO-SUS-5D, Coolant-Through Flute Overall Shank Diameter EDP Length Length Diameter Number Fractional Wire Gage Letter Size mm Inch FL L d Size 8667462 - - - 4.62 0.1819 42 8667464 - - - 4.64 0.1827 5 8667470 - - - 4.70 0.1850 43 8682470 - - - 6 521018712 3/16 - - 4.76 0.1875 3/16 8667480 - - - 5 4.80 0.1890 44 95 8682480 - - - 6 8667485 - - - 4.85 0.1909 8667490 - - - 5 4.90 0.1929 8682490 - - - 6 45 8667500 - - - 5 5.00 0.1969 8682500 - - - 6 8667510 - - - 5.10 0.2008 41 521020312 13/64 - - 5.16 0.2031 1/4 8667520 - - - 5.20 0.2047 42 8667525 - - - 5.25 0.2067 8667530 - - - 5.30 0.2087 43 8667540 - - - 5.40 0.2126 6 521021312 - 3 - 5.41 0.2130 44 8667550 - - - 5.50 0.2165 8667552 - - - 5.52 0.2173 100 8667554 - - - 5.54 0.2181 45 521021812 7/32 - - 5.56 0.2188 1/4 8667560 - - - 5.60 0.2205 8667570 - - - 5.70 0.2244 46 6 8667580 - - - 5.80 0.2283 47 8667590 - - - 5.90 0.2323 521023412 15/64 - - 5.95 0.2344 48 1/4 8667600 - - - 6.00 0.2362 6 8667610 - - - 7 6.10 0.2402 49 8682610 - - - 8 8667620 - - - 7 6.20 0.2441 8682620 - - - 50 8 8667625 - - - 6.25 0.2461 7 8667630 - - - 6.30 0.2480 51 8682630 - - - 8 109 8667635 1/4 - - 6.35 0.2500 1/4 8667640 - - - 7 6.40 0.2520 8682640 - - - 52 8 8667650 - - - 7 6.50 0.2559 8682650 - - - 8 521025712 - - F 6.53 0.2570 53 8667660 - - - 6.60 0.2598 7 Packed: 1 pc. Available WXL® coating only. ADR MEGA COOLER™ applies only to diameter sizes over 6 mm. Work Material P M K N S H Carbon Steels Alloy Nickel Steels Stainless Steels Aluminum Alloy Titanium Hardened Steels List No. Low Med. High Die Cast 1010 1035 4140 Steels Iron 6061 Casting Inconel 6Al4V ~35 35-45 45-50 50-70 1018 1045 1065 4340 300 400 17-4 PH 7075 (30 HRC) HRC HRC HRC HRC 5210 good best WWW.OSGTOOL.COM A Brand® ADO-SUS 119
