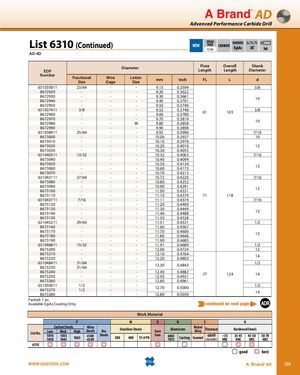

Общий каталог OSG 2018 - 2019 - страница 109

AD Advanced Performance Carbide Drill List 6310 (Continued) NEW SPEED FEED P298 CARBIDE EgiAs 30˚ AD-4D Flute Overall Shank Diameter EDP Length Length Diameter Number Fractional Wire Letter mm Inch FL L d Size Gage Size 631035811 23/64 - - 9.13 0.3594 3/8 8672920 - - - 9.20 0.3622 8672930 - - - 9.30 0.3661 10 8672940 - - - 9.40 0.3701 8672950 - - - 9.50 0.3740 631037411 3/8 - - 9.52 0.3748 3/8 61 103 8672960 - - - 9.60 0.3780 8672970 - - - 9.70 0.3819 10 8672980 - - W 9.80 0.3858 8672990 - - - 9.90 0.3898 631038911 25/64 - - 9.92 0.3906 7/16 8673000 - - - 10.00 0.3937 10 8673010 - - - 10.10 0.3976 8673020 - - - 10.20 0.4016 12 8673030 - - - 10.30 0.4055 631040511 13/32 - - 10.32 0.4063 7/16 8673040 - - - 10.40 0.4094 8673050 - - - 10.50 0.4134 12 8673060 - - - 10.60 0.4173 8673070 - - - 10.70 0.4213 631042111 27/64 - - 10.72 0.4220 7/16 8673080 - - - 10.80 0.4252 8673090 - - - 10.90 0.4291 12 8673100 - - - 11.00 0.4331 8673110 - - - 11.10 0.4370 71 118 631043711 7/16 - - 11.11 0.4374 7/16 8673120 - - - 11.20 0.4409 8673130 - - - 11.30 0.4449 12 8673140 - - - 11.40 0.4488 8673150 - - - 11.50 0.4528 631045211 29/64 - - 11.51 0.4531 1/2 8673160 - - - 11.60 0.4567 8673170 - - - 11.70 0.4606 12 8673180 - - - 11.80 0.4646 8673190 - - - 11.90 0.4685 631046811 15/32 - - 11.91 0.4689 1/2 8673200 - - - 12.00 0.4724 12 8673210 - - - 12.10 0.4764 14 8673220 - - - 12.20 0.4803 631048411 31/64 - - 1/2 12.30 0.4843 8673230 31/64 - - 8673240 - - - 12.40 0.4882 77 124 14 8673250 - - - 12.50 0.4921 8673260 - - - 12.60 0.4961 631050011 1/2 - - 1/2 12.70 0.5000 8673270 1/2 - - 14 8673280 - - - 12.80 0.5039 Packed: 1 pc. Available EgiAs Coating Only. ADR Work Material P M K N S H Carbon Steels Alloy Nickel Titanium Steels Stainless Steels Aluminum Alloy Hardened Steels List No. Low Med. High Die Cast Steels Iron 1010 1018 1035 1045 1065 4140 4340 300 400 17-4 PH 6061 7075 Casting Inconel 6Al4V (30 HRC) ~35 HRC 35-45 HRC 45-50 HRC 50-70 HRC 6310 good best WWW.OSGTOOL.COM A Brand® AD 109
