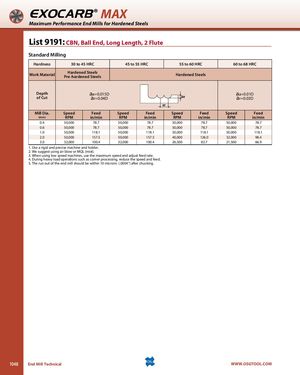

EXOCARB® MAX Maximum Performance End Mills for Hardened Steels List 9191: CBN, Ball End, Long Length, 2 Flute Standard Milling Hardness 30 to 45 HRC 45 to 55 HRC 55 to 60 HRC 60 to 68 HRC Work Material Hardened SteelsPre-hardened Steels Hardened Steels Depth aa=0.015D aa=0.01D of Cut ar=0.04D ar=0.03D Mill Dia. Speed Feed Speed Feed Speed Feed Speed Feed (mm) RPM in/min RPM in/min RPM in/min RPM in/min 0.4 50,000 78.7 50,000 78.7 50,000 78.7 50,000 78.7 0.6 50,000 78.7 50,000 78.7 50,000 78.7 50,000 78.7 1.0 50,000 118.1 50,000 118.1 50,000 118.1 50,000 118.1 2.0 50,000 157.5 50,000 157.5 40,000 126.0 32,000 98.4 3.0 32,000 100.4 32,000 100.4 26,500 82.7 21,500 66.9 1. Use a rigid and precise machine and holder. 2. We suggest using air blow or MQL (mist). 3. When using low speed machines, use the maximum speed and adjust feed rate. 4. During heavy load operations such as corner processing, reduce the speed and feed. 5. The run out of the end mill should be within 10 microns (.0004’’) after chucking. 1048 End Mill Technical WWW.OSGTOOL.COM
