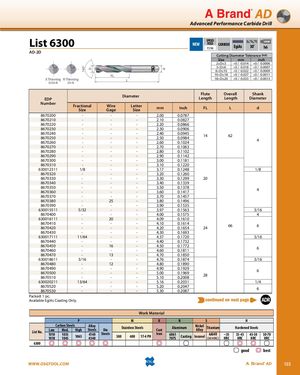

Общий каталог OSG 2018 - 2019 - страница 103

AD Advanced Performance Carbide Drill List 6300 NEW SPEED FEED P298 CARBIDE EgiAs 30˚ AD-2D Cutting Diameter Tolerance (h8) Size mm inch 2≤D≤3 +0 / -0.014 +0 / -0.0006 34) Flute Overall Shank Diameter EDP Length Length Diameter Number Fractional Wire Letter mm Inch FL L d Size Gage Size 8670200 - - - 2.00 0.0787 8670210 - - - 2.10 0.0827 8670220 - - - 2.20 0.0866 8670230 - - - 2.30 0.0906 8670240 - - - 2.40 0.0945 14 62 8670250 - - - 2.50 0.0984 4 8670260 - - - 2.60 0.1024 8670270 - - - 2.70 0.1063 8670280 - - - 2.80 0.1102 8670290 - - - 2.90 0.1142 8670300 - - - 3.00 0.1181 8670310 - - - 3.10 0.1220 630012311 1/8 - - 3.17 0.1248 1/8 8670320 - - - 3.20 0.1260 8670330 - - - 3.30 0.1299 20 8670340 - - - 3.40 0.1339 8670350 - - - 3.50 0.1378 4 8670360 - - - 3.60 0.1417 8670370 - - - 3.70 0.1457 8670380 - 25 - 3.80 0.1496 8670390 - - - 3.90 0.1535 630015511 5/32 - - 3.97 0.1563 3/16 8670400 - - - 4.00 0.1575 4 630016111 - 20 - 4.09 0.1610 8670410 - - - 4.10 0.1614 66 6 8670420 - - - 4.20 0.1654 24 8670430 - - - 4.30 0.1693 630017111 11/64 - - 4.37 0.1720 3/16 8670440 - - - 4.40 0.1732 8670450 - 16 - 4.50 0.1772 6 8670460 - - - 4.60 0.1811 8670470 - 13 - 4.70 0.1850 630018611 3/16 - - 4.76 0.1874 3/16 8670480 - 12 - 4.80 0.1890 8670490 - - - 4.90 0.1929 6 8670500 - - - 5.00 0.1969 28 8670510 - - - 5.10 0.2008 630020211 13/64 - - 5.16 0.2031 1/4 8670520 - - - 5.20 0.2047 6 8670530 - - - 5.30 0.2087 Packed: 1 pc. Available EgiAs Coating Only. ADR Work Material P M K N S H Carbon Steels Alloy Nickel Titanium Steels Stainless Steels Aluminum Alloy Hardened Steels List No. Low Med. High Die Cast Steels Iron 1010 1018 1035 1045 1065 4140 4340 300 400 17-4 PH 6061 7075 Casting Inconel 6Al4V (30 HRC) ~35 HRC 35-45 HRC 45-50 HRC 50-70 HRC 6300 good best WWW.OSGTOOL.COM A Brand® AD 103
