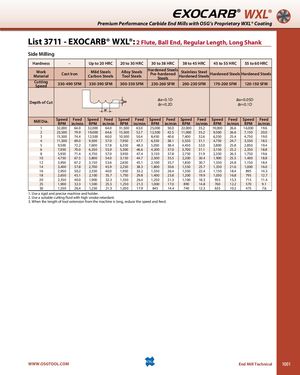

EXOCARB® WXL® Premium Performance Carbide End Mills with OSG’s Proprietary WXL® Coating List 3711 - EXOCARB® WXL®: 2 Flute, Ball End, Regular Length, Long Shank Side Milling Hardness – Up to 20 HRC 20 to 30 HRC 30 to 38 HRC 38 to 45 HRC 45 to 55 HRC 55 to 60 HRC WorkMaterial Cast Iron Mild SteelsCarbon Steels Alloy SteelsTool SteelsHardened Steels Pre-hardened Steels Stainless Hardened Steel Steels Hardened Steels Hardened Steels CuttingSpeed 330-490 SFM 330-390 SFM 300-330 SFM 230-260 SFM 200-230 SFM 170-200 SFM 120-150 SFM Depth of Cut aa=0.1D aa=0.05Dar=0.2Dar=0.1D Mill Dia. Speed Feed Speed Feed Speed Feed Speed Feed Speed Feed Speed Feed Speed FeedRPMin/minRPMin/minRPMin/minRPMin/minRPMin/minRPMin/minRPMin/min 1 32,000 64.0 32,000 64.0 31,500 63.0 25,000 50.0 22,000 35.2 19,000 26.6 14,000 19.6 2 23,500 79.9 19,000 64.6 15,500 52.7 12,500 42.5 11,000 35.2 9,500 26.6 7,150 20.0 3 15,500 74.4 12,500 60.0 10,500 50.4 8,450 40.6 7,400 32.6 6,350 25.4 4,750 19.0 4 11,500 69.0 9,500 57.0 7,950 47.7 6,350 38.1 5,550 31.1 4,750 24.7 3,550 18.5 5 9,500 72.2 7,600 57.8 6,350 48.3 5,050 38.4 4,450 32.0 3,800 25.8 2,850 19.4 6 7,950 70.0 6,350 55.9 5,300 46.6 4,200 37.0 3,700 31.1 3,150 25.2 2,350 18.8 8 5,950 71.4 4,750 57.0 3,950 47.4 3,150 37.8 2,750 31.9 2,350 26.3 1,750 19.6 10 4,750 67.5 3,800 54.0 3,150 44.7 2,500 35.5 2,200 30.4 1,900 25.5 1,400 18.8 12 3,950 67.2 3,150 53.6 2,650 45.1 2,100 35.7 1,850 30.7 1,550 24.8 1,150 18.4 14 3,400 57.8 2,700 45.9 2,250 38.3 1,800 30.6 1,550 25.7 1,350 21.6 1,000 16.0 16 2,950 50.2 2,350 40.0 1,950 33.2 1,550 26.4 1,350 22.4 1,150 18.4 895 14.3 18 2,650 45.1 2,100 35.7 1,750 29.8 1,400 23.8 1,200 19.9 1,050 16.8 795 12.7 20 2,350 40.0 1,900 32.3 1,550 26.4 1,250 21.3 1,100 18.3 955 15.3 715 11.4 25 1,900 32.3 1,500 25.5 1,250 21.3 1,000 17.0 890 14.8 760 12.2 570 9.1 30 1,550 26.4 1,250 21.3 1,050 17.9 845 14.4 740 12.3 635 10.2 475 7.6 1. Use a rigid and precise machine and holder. 2. Use a suitable cutting fluid with high smoke retardant. 3. When the length of tool extension from the machine is long, reduce the speed and feed. WWW.OSGTOOL.COM End Mill Technical 1001
