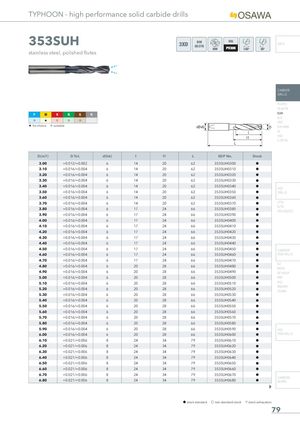

TYPHOON - high performance solid carbide drills
353SUH
3XD DIN 6537K INFO
stainless steel, polished flutes
CARBIDE DRILLS
PU-HPU
| P M | K N | S H |
| I H | I I | I |
| H1st choiceI | suitable |
TA-4HTA SUH ALH HRC H 1st choice I suitable SUH MINI HL HSD C-SD-TA
| D(m7) | D Tol. | d(h6) | l | l1 | L | EDP No. | Stock | |
| 3.00 | +0.012/+0.002 | 6 | 14 | 20 | 62 | 353SUH0300 | h | |
| 3.10 | +0.016/+0.004 | 6 | 14 | 20 | 62 | 353SUH0310 | h | |
| 3.20 | +0.016/+0.004 | 6 | 14 | 20 | 62 | 353SUH0320 | h | |
| 3.30 | +0.016/+0.004 | 6 | 14 | 20 | 62 | 353SUH0330 | h | |
| 3.40 | +0.016/+0.004 | 6 | 14 | 20 | 62 | 353SUH0340 | h | HSS |
| 3.50 | +0.016/+0.004 | 6 | 14 | 20 | 62 | 353SUH0350 | h | DRILLS |
| 3.60 | +0.016/+0.004 | 6 | 14 | 20 | 62 | 353SUH0360 | h | |
| 3.70 | +0.016/+0.004 | 6 | 14 | 20 | 62 | 353SUH0370 | h | LFTA SUTA |
| 3.80 | +0.016/+0.004 | 6 | 17 | 24 | 66 | 353SUH0380 | h | HSS-HSS/ |
| 3.90 | +0.016/+0.004 | 6 | 17 | 24 | 66 | 353SUH0390 | h | |
| 4.00 | +0.016/+0.004 | 6 | 17 | 24 | 66 | 353SUH0400 | h | |
| 4.10 | +0.016/+0.004 | 6 | 17 | 24 | 66 | 353SUH0410 | h | |
| 4.20 | +0.016/+0.004 | 6 | 17 | 24 | 66 | 353SUH0420 | h | |
| 4.30 | +0.016/+0.004 | 6 | 17 | 24 | 66 | 353SUH0430 | h | |
| 4.40 | +0.016/+0.004 | 6 | 17 | 24 | 66 | 353SUH0440 | h | |
| 4.50 | +0.016/+0.004 | 6 | 17 | 24 | 66 | 353SUH0450 | h | CARBIDE |
| 4.60 | +0.016/+0.004 | 6 | 17 | 24 | 66 | 353SUH0460 | h | END-MIL |
| 4.70 | +0.016/+0.004 | 6 | 17 | 24 | 66 | 353SUH0470 | h | |
| 4.80 | +0.016/+0.004 | 6 | 20 | 28 | 66 | 353SUH0480 | h | G2 MDTA |
| 4.90 | +0.016/+0.004 | 6 | 20 | 28 | 66 | 353SUH0490 | h | HF VH/UP |
| 5.00 | +0.016/+0.004 | 6 | 20 | 28 | 66 | 353SUH0500 | h | MEF |
| 5.10 | +0.016/+0.004 | 6 | 20 | 28 | 66 | 353SUH0510 | h | ALU |
| 5.20 | +0.016/+0.004 | 6 | 20 | 28 | 66 | 353SUH0520 | h | MEX/MH UH/MH |
| 5.30 | +0.016/+0.004 | 6 | 20 | 28 | 66 | 353SUH0530 | h | |
| 5.40 | +0.016/+0.004 | 6 | 20 | 28 | 66 | 353SUH0540 | h | |
| 5.50 | +0.016/+0.004 | 6 | 20 | 28 | 66 | 353SUH0550 | h | |
| 5.60 | +0.016/+0.004 | 6 | 20 | 28 | 66 | 353SUH0560 | h | |
| 5.70 | +0.016/+0.004 | 6 | 20 | 28 | 66 | 353SUH0570 | h | |
| 5.80 | +0.016/+0.004 | 6 | 20 | 28 | 66 | 353SUH0580 | h | |
| 5.90 | +0.016/+0.004 | 6 | 20 | 28 | 66 | 353SUH0590 | h | HSS |
| 6.00 | +0.016/+0.004 | 6 | 20 | 28 | 66 | 353SUH0600 | h | END-MIL |
| 6.10 | +0.021/+0.006 | 8 | 24 | 34 | 79 | 353SUH0610 | h | |
| 6.20 | +0.021/+0.006 | 8 | 24 | 34 | 79 | 353SUH0620 | h | |
| 6.30 | +0.021/+0.006 | 8 | 24 | 34 | 79 | 353SUH0630 | h | |
| 6.40 | +0.021/+0.006 | 8 | 24 | 34 | 79 | 353SUH0640 | h | |
| 6.50 | +0.021/+0.006 | 8 | 24 | 34 | 79 | 353SUH0650 | h | |
| 6.60 | +0.021/+0.006 | 8 | 24 | 34 | 79 | 353SUH0660 | h | |
| 6.70 | +0.021/+0.006 | 8 | 24 | 34 | 79 | 353SUH0670 | h | |
| 6.80 | +0.021/+0.006 | 8 | 24 | 34 | 79 | 353SUH0680 | h | CARBIDE BURRS |
