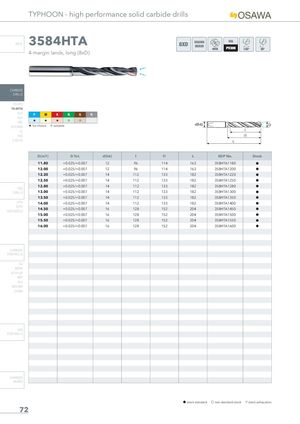

TYPHOON - high performance solid carbide drills

3584HTA

8XD OSAWA INFO NORM

4-margin lands, long (8xD)

CARBIDE DRILLS

PU-HPU TA-4HTA SUH ALH HRC SUH MINI HL HSD C-SD-TA

P	M	K	N	S	H
H	H	H	I	I

H 1st choice I suitable

D(m7)	D Tol.	d(h6)	l	l1	L	EDP No.	Stock
11.80	+0.025/+0.007	12	96	114	163	358HTA1180	h
12.00	+0.025/+0.007	12	96	114	163	358HTA1200	h
12.20	+0.025/+0.007	14	112	133	182	358HTA1220	h
12.50	+0.025/+0.007	14	112	133	182	358HTA1250	h
12.80	+0.025/+0.007	14	112	133	182	358HTA1280	h
13.00	+0.025/+0.007	14	112	133	182	358HTA1300	h
13.50	+0.025/+0.007	14	112	133	182	358HTA1350	h
14.00	+0.025/+0.007	14	112	133	182	358HTA1400	h
14.50	+0.025/+0.007	16	128	152	204	358HTA1450	h
15.00	+0.025/+0.007	16	128	152	204	358HTA1500	h
15.50	+0.025/+0.007	16	128	152	204	358HTA1550	h
16.00	+0.025/+0.007	16	128	152	204	358HTA1600	h

CARBIDE END-MILLS

G2 MDTA HF VH/UP MEF ALU MEX/MH UH/MH

HSS END-MILLS

CARBIDE BURRS

h stock standard f non-standard stock m stock exhaustion
