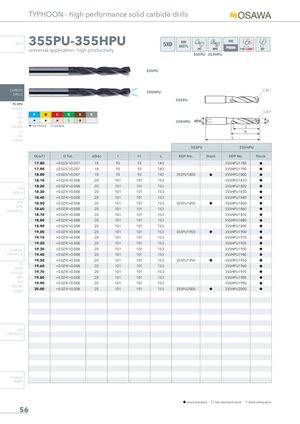

TYPHOON - high performance solid carbide drills INFO 355PU-355HPU 5XD DIN 6537L 140°+C45° universal application, high productivity 355PU 355HPU 355PU CARBIDE C45° 355HPU DRILLS 355PU PU-HPU TA-4HTA SUH C45° P M K N S H ALH H H H I H 355HPU HRC SUH MINI H 1st choice I suitable HL HSD C-SD-TA 355PU 355HPU D(m7) D Tol. d(h6) l l1 L EDP No. Stock EDP No. Stock 17.80 +0.025/+0.007 18 93 93 143 355HPU1780 h 17.90 +0.025/+0.007 18 93 93 143 355HPU1790 h 18.00 +0.025/+0.007 18 93 93 143 355PU1800 h 355HPU1800 h 18.10 +0.029/+0.008 20 101 101 153 355HPU1810 h 18.20 +0.029/+0.008 20 101 101 153 355HPU1820 h HSS DRILLS 18.30 +0.029/+0.008 20 101 101 153 355HPU1830 h 18.40 +0.029/+0.008 20 101 101 153 355HPU1840 h LFTA 18.50 +0.029/+0.008 20 101 101 153 355PU1850 h 355HPU1850 h SUTA 18.60 +0.029/+0.008 20 101 101 153 355HPU1860 h HSS-HSS/CO 18.70 +0.029/+0.008 20 101 101 153 355HPU1870 h 18.80 +0.029/+0.008 20 101 101 153 355HPU1880 h 18.90 +0.029/+0.008 20 101 101 153 355HPU1890 h 19.00 +0.029/+0.008 20 101 101 153 355PU1900 h 355HPU1900 h 19.10 +0.029/+0.008 20 101 101 153 355HPU1910 h 19.20 +0.029/+0.008 20 101 101 153 355HPU1920 h CARBIDE 19.30 +0.029/+0.008 20 101 101 153 355HPU1930 h END-MILLS 19.40 +0.029/+0.008 20 101 101 153 355HPU1940 h 19.50 +0.029/+0.008 20 101 101 153 355PU1950 h 355HPU1950 h G2 19.60 +0.029/+0.008 20 101 101 153 355HPU1960 h MDTA HF VH/UP 19.70 +0.029/+0.008 20 101 101 153 355HPU1970 h MEF 19.80 +0.029/+0.008 20 101 101 153 355HPU1980 h ALU 19.90 +0.029/+0.008 20 101 101 153 355HPU1990 h MEX/MH 20.00 +0.029/+0.008 20 101 101 153 355PU2000 h 355HPU2000 h UH/MH HSS END-MILLS CARBIDE BURRS h stock standard f non-standard stock m stock exhaustion 56 Libro 1.indb 56 21/10/2021 12:08:00
