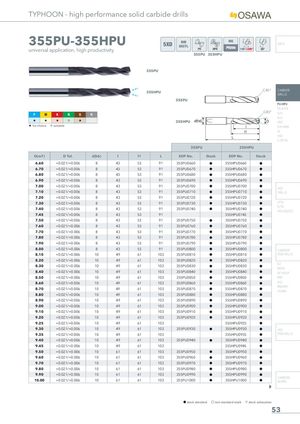

TYPHOON - high performance solid carbide drills

355PU-355HPU

5XD DIN 6537L INFO universal application, high productivity 140°+C45° 355PU 355HPU

355PU

				355HPU 355PU
P	M	K N	S H
H	H	H I	H	355HPU
H1st ch	oice	Isuitable

C45° CARBIDE DRILLS

PU-HPU TA-4HTA C45° SUH ALH H 1st choice I suitable SUH MINI HL HSD C-SD-TA

						355P	U	355HP	U
D(m7)	D Tol.	d(h6)	l	l1	L	EDP No.	Stock	EDP No.	Stock
6.60	+0.021/+0.006	8	43	53	91	355PU0660	h	355HPU0660	h
6.70	+0.021/+0.006	8	43	53	91	355PU0670	h	355HPU0670	h
6.80	+0.021/+0.006	8	43	53	91	355PU0680	h	355HPU0680	h
6.90	+0.021/+0.006	8	43	53	91	355PU0690	h	355HPU0690	h
7.00	+0.021/+0.006	8	43	53	91	355PU0700	h	355HPU0700	HSS h
7.10	+0.021/+0.006	8	43	53	91	355PU0710	h	355HPU0710	DRILLS h
7.20	+0.021/+0.006	8	43	53	91	355PU0720	h	355HPU0720	h
7.30	+0.021/+0.006	8	43	53	91	355PU0730	h	355HPU0730	LFTA h
7.40	+0.021/+0.006	8	43	53	91	355PU0740	h	355HPU0740	SUTA HSS-HSS/CO h
7.45	+0.021/+0.006	8	43	53	91			355HPU0745	h
7.50	+0.021/+0.006	8	43	53	91	355PU0750	h	355HPU0750	h
7.60	+0.021/+0.006	8	43	53	91	355PU0760	h	355HPU0760	h
7.70	+0.021/+0.006	8	43	53	91	355PU0770	h	355HPU0770	h
7.80	+0.021/+0.006	8	43	53	91	355PU0780	h	355HPU0780	h
7.90	+0.021/+0.006	8	43	53	91	355PU0790	h	355HPU0790	h
8.00	+0.021/+0.006	8	43	53	91	355PU0800	h	355HPU0800	CARBIDE h
8.10	+0.021/+0.006	10	49	61	103	355PU0810	h	355HPU0810	END-MILLS h
8.20	+0.021/+0.006	10	49	61	103	355PU0820	h	355HPU0820	h
8.30	+0.021/+0.006	10	49	61	103	355PU0830	h	355HPU0830	G2 MDTA h
8.40	+0.021/+0.006	10	49	61	103	355PU0840	h	355HPU0840	HF VH/UP h
8.50	+0.021/+0.006	10	49	61	103	355PU0850	h	355HPU0850	MEF h
8.60	+0.021/+0.006	10	49	61	103	355PU0860	h	355HPU0860	ALU h
8.70	+0.021/+0.006	10	49	61	103	355PU0870	h	355HPU0870	MEX/MH UH/MH h
8.80	+0.021/+0.006	10	49	61	103	355PU0880	h	355HPU0880	h
8.90	+0.021/+0.006	10	49	61	103	355PU0890	h	355HPU0890	h
9.00	+0.021/+0.006	10	49	61	103	355PU0900	h	355HPU0900	h
9.10	+0.021/+0.006	10	49	61	103	355PU0910	h	355HPU0910	h
9.20	+0.021/+0.006	10	49	61	103	355PU0920	h	355HPU0920	h
9.25	+0.021/+0.006	10	49	61	103			355HPU0925	h
9.30	+0.021/+0.006	10	49	61	103	355PU0930	h	355HPU0930	HSS h
9.35	+0.021/+0.006	10	49	61	103			355HPU0935	END-MILLS h
9.40	+0.021/+0.006	10	49	61	103	355PU0940	h	355HPU0940	h
9.45	+0.021/+0.006	10	49	61	103			355HPU0945	h
9.50	+0.021/+0.006	10	61	61	103	355PU0950	h	355HPU0950	h
9.60	+0.021/+0.006	10	61	61	103	355PU0960	h	355HPU0960	h
9.70	+0.021/+0.006	10	61	61	103	355PU0970	h	355HPU0970	h
9.80	+0.021/+0.006	10	61	61	103	355PU0980	h	355HPU0980	h
9.90	+0.021/+0.006	10	61	61	103	355PU0990	h	355HPU0990	h
10.00	+0.021/+0.006	10	61	61	103	355PU1000	h	355HPU1000	CARBIDE BURRS h
