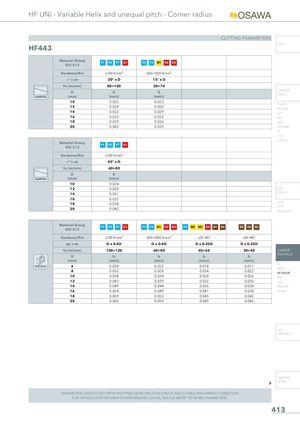

HF UNI - Variable Helix and unequal pitch - Corner radius
CUTTING PARAMETERS
| Material Group ISO 513 | P1 P2 P7 K1 | P3 P4 M1 K2 K3 | |
| Hardness/Rm | ≤700 N/mm² | 600÷1000 N/mm² | |
| ° x ae | 30° x D | 15° x D | |
| Vc (m/min) | 80÷100 | 50÷70 | |
| D | fz | fz | |
| RAMPING | (mm) | (mm/z) | (mm/z) |
| 10 | 0.025 | 0.023 | |
| 12 | 0.028 | 0.026 | |
| 14 | 0.032 | 0.029 | |
| 16 | 0.035 | 0.032 | |
| 18 | 0.039 | 0.036 | |
| 20 | 0.043 | 0.039 |
INFO
CARBIDE DRILLS
PU-HPU TA-4HTA SUH
20 0.043 0.039 SUH MINI
HL HSD C-SD-TA
| Material Group ISO 513 | P1 P2 P7 K1 | |
| Hardness/Rm | ≤700 N/mm² | |
| ° x ae | 45° x D | |
| Vc (m/min) | 60÷80 | |
| D | fz | |
| RAMPING | (mm) | (mm/z) |
| 10 | 0.024 | |
| 12 | 0.028 | |
| 14 | 0.031 | |
| 16 | 0.035 | |
| 18 | 0.038 | |
| 20 | 0.042 |
LFTA SUTA HSS-HSS/CO
Material Group P1 P2 P7 K1 P3 P4 M1 K2 K3 P5 M2 M3 K4 S1 S4 S2 S3 S5
ISO 513
| Material Group ISO 513 | P1 P2 P7 K1 | P3 P4 M1 K2 K3 | P5 M2 M3 K4 S1 S4 | S2 S3 S5 | |
| Hardness/Rm | ≤700 N/mm² | 600÷1000 N/mm² | ≤35 HRC | ≤40 HRC | |
| ap x ae | D x 0.4D | D x 0.4D | D x 0.25D | D x 0.25D | |
| Vc (m/min) | 100÷120 | 60÷80 | 45÷65 | 30÷40 | |
| D (mm) | fz (mm/z) | fz (mm/z) | fz (mm/z) | fz (mm/z) | |
| VERTICAL | 6 | 0.024 | 0.022 | 0.018 | 0.017 |
| 8 | 0.032 | 0.028 | 0.024 | 0.022 | |
| 10 | 0.038 | 0.034 | 0.028 | 0.026 | |
| 12 | 0.043 | 0.039 | 0.032 | 0.030 | |
| 14 | 0.049 | 0.044 | 0.036 | 0.034 | |
| 16 | 0.054 | 0.049 | 0.041 | 0.038 | |
| 18 | 0.059 | 0.053 | 0.045 | 0.042 | |
| 20 | 0.066 | 0.059 | 0.049 | 0.046 |
END-MILLS
PARAMETERS SUGGESTED WITH HIGH PRECISION WELDON CHUCK AND STABLE MACHINING CONDITION. FOR APPLICATION ON HIGH POWER MILLING CHUCK, PLEASE REFER TO HF442 PARAMETERS.
