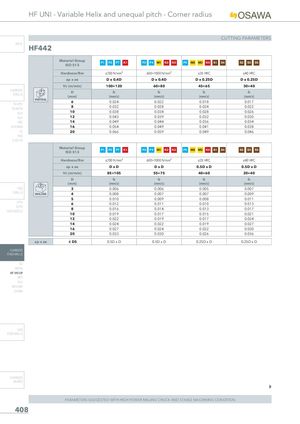

HF UNI - Variable Helix and unequal pitch - Corner radius

CUTTING PARAMETERS

Material Group ISO 513	P1 P2 P7 K1	P3 P4 M1 K2 K3	P5 M2 M3 K4 S1 S4	S2 S3 S5
Hardness/Rm	≤700 N/mm²	600÷1000 N/mm²	≤35 HRC	≤40 HRC
ap x ae	D x 0.4D	D x 0.4D	D x 0.25D	D x 0.25D
Vc (m/min)	100÷120	60÷80	45÷65	30÷40
D (mm)	fz (mm/z)	fz (mm/z)	fz (mm/z)	fz (mm/z)
6	0.024	0.022	0.018	0.017
8	0.032	0.028	0.024	0.022
10	0.038	0.034	0.028	0.026
12	0.043	0.039	0.032	0.030
14	0.049	0.044	0.036	0.034
16	0.054	0.049	0.041	0.038
20	0.066	0.059	0.049	0.046

INFO

CARBIDE DRILLS

PU-HPU TA-4HTA SUH

HL 20 0.066 0.059 0.049 0.046

HSD C-SD-TA

	Material Group ISO 513	P1 P2 P7 K1	P3 P4 M1 K2 K3	P5 M2 M3 K4 S1 S4	S2 S3 S5
	Hardness/Rm	≤700 N/mm²	600÷1000 N/mm²	≤35 HRC	≤40 HRC
	ap x ae	DxD	DxD	0.5D x D	0.5D x D
	Vc (m/min)	85÷105	55÷75	40÷60	20÷40
	D	fz	fz	fz	fz
	(mm)	(mm/z)	(mm/z)	(mm/z)	(mm/z)
	3	0.006	0.006	0.005	0.007
DRILLING	4	0.008	0.007	0.007	0.009
	5	0.010	0.009	0.008	0.011
	6	0.012	0.011	0.010	0.013
	8	0.016	0.014	0.013	0.017
	10	0.019	0.017	0.015	0.021
	12	0.022	0.019	0.017	0.024
	14	0.024	0.022	0.019	0.027
	16	0.027	0.024	0.022	0.030
	20	0.033	0.030	0.026	0.036
ap x ae	≤ D5	0.5D x D	0.5D x D	0.25D x D	0.25D x D

G2 MDTA HF VH/UP MEF ALU MEX/MH UH/MH

HSS END-MILLS

CARBIDE BURRS

PARAMETERS SUGGESTED WITH HIGH POWER MILLING CHUCK AND STABLE MACHINING CONDITION
