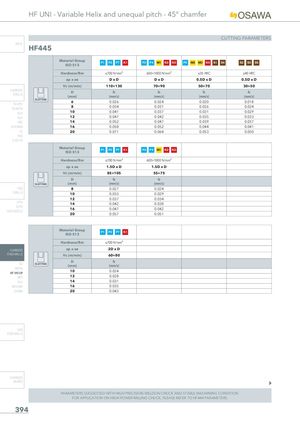

HF UNI - Variable Helix and unequal pitch - 45° chamfer
INFO
CARBIDE DRILLS
PU-HPU TA-4HTA SUH ALH HRC SUH MINI HL HSD C-SD-TA
HSS DRILLS
LFTA SUTA HSS-HSS/CO
HF445
SLOTTING
SLOTTING
CUTTING PARAMETERS
Material Group P1 P2 P7 K1 P3 P4 M1 K2 K3 P5 M2 M3 K4 S1 S4 S2 S3 S5
ISO 513
| Hardness/Rm | ≤700 N/mm² | 600÷1000 N/mm² | ≤35 HRC | ≤40 HRC | ||
| ap x ae | D x D | D x D | 0.5D x D | 0.5D x D | ||
| Vc (m/min) | 110÷130 | 70÷90 | 50÷70 | 30÷50 |
| D | fz | fz | fz | fz |
| (mm) | (mm/z) | (mm/z) | (mm/z) | (mm/z) |
| 6 | 0.026 | 0.024 | 0.020 | 0.018 |
| 8 | 0.034 | 0.031 | 0.026 | 0.024 |
| 10 | 0.041 | 0.037 | 0.031 | 0.029 |
| 12 | 0.047 | 0.042 | 0.035 | 0.033 |
| 14 | 0.052 | 0.047 | 0.039 | 0.037 |
| 16 | 0.058 | 0.052 | 0.044 | 0.041 |
| 20 | 0.071 | 0.064 | 0.053 | 0.050 |
Material Group P1 P2 P7 K1 P3 P4 M1 K2 K3
ISO 513
Hardness/Rm ≤700 N/mm² 600÷1000 N/mm²
| ap x ae | 1.5D x D | 1.5D x D |
| Vc (m/min) | 85÷105 | 55÷75 |
| D | fz | fz |
| (mm) | (mm/z) | (mm/z) |
| 8 | 0.027 | 0.024 |
| 10 | 0.033 | 0.029 |
| 12 | 0.037 | 0.034 |
| 14 | 0.042 | 0.038 |
| 16 | 0.047 | 0.042 |
| 20 | 0.057 | 0.051 |
Material Group P1 P2 P7 K1
ISO 513 Hardness/Rm ≤700 N/mm²
| CARBIDE | ap x ae | 2D x D |
| END-MILLS | Vc (m/min) | 60÷80 |
SLOTTING D fz
G2 (mm) (mm/z) MDTA 10 0.024 HF VH/UP
| MEF | 12 | 0.028 | |
| ALU | 14 | 0.031 | |
| MEX/MH | 16 | 0.035 | |
| UH/MH | 20 | 0.043 |
HSS END-MILLS
CARBIDE BURRS
PARAMETERS SUGGESTED WITH HIGH PRECISION WELDON CHUCK AND STABLE MACHINING CONDITION. FOR APPLICATION ON HIGH POWER MILLING CHUCK, PLEASE REFER TO HF444 PARAMETERS.
