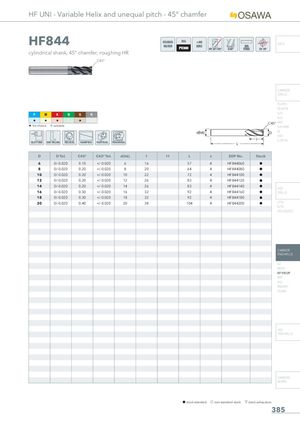

HF UNI - Variable Helix and unequal pitch - 45° chamfer

HF844

OSAWA NORM INFO

cylindrical shank, 45° chamfer, roughing HR

C45°

P	M	K	N	S	H
H	H	H		H

H 1st choice I suitable

1.5D

SLOTTING SIDE MILLING HELICAL RAMPING VERTICAL TROCHOIDAL

CARBIDE DRILLS

PU-HPU TA-4HTA SUH ALH C45° HRC SUH MINI HL HSD C-SD-TA

D	D Tol.	C45°	C45° Tol.	d(h6)	l	l1 L	z	EDP No.	Stock
6	0/-0.020	0.10	+/-0.020	6	16	57	4	HF844060	h
8	0/-0.020	0.20	+/-0.020	8	20	64	4	HF844080	h
10	0/-0.020	0.20	+/-0.020	10	22	72	4	HF844100	h
12	0/-0.020	0.20	+/-0.020	12	26	83	4	HF844120	h
14	0/-0.020	0.20	+/-0.020	14	26	83	4	HF844140	h
16	0/-0.020	0.30	+/-0.020	16	32	92	4	HF844160	h
18	0/-0.020	0.30	+/-0.020	18	32	92	4	HF844180	h
20	0/-0.020	0.40	+/-0.020	20	38	104	4	HF844200	h

HSS DRILLS

LFTA SUTA HSS-HSS/CO

CARBIDE END-MILLS

G2 MDTA HF VH/UP MEF ALU MEX/MH UH/MH

HSS END-MILLS

CARBIDE BURRS

h stock standard f non-standard stock m stock exhaustion
