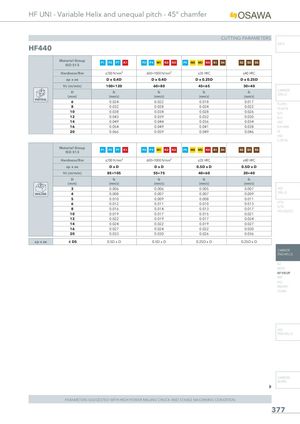

HF UNI - Variable Helix and unequal pitch - 45° chamfer
CUTTING PARAMETERS
HF440
Material Group P1 P2 P7 K1 P3 P4 M1 K2 K3 P5 M2 M3 K4 S1 S4 S2 S3 S5
ISO 513
| Hardness/Rm | ≤700 N/mm² | 600÷1000 N/mm² | ≤35 HRC | ≤40 HRC | ||
| ap x ae | D x 0.4D | D x 0.4D | D x 0.25D | D x 0.25D | ||
| Vc (m/min) | 100÷120 | 60÷80 | 45÷65 | 30÷40 |
| D | fz | fz | fz | fz |
| (mm) | (mm/z) | (mm/z) | (mm/z) | (mm/z) |
VERTICAL
| 6 | 0.024 | 0.022 | 0.018 | 0.017 |
| 8 | 0.032 | 0.028 | 0.024 | 0.022 |
| 10 | 0.038 | 0.034 | 0.028 | 0.026 |
| 12 | 0.043 | 0.039 | 0.032 | 0.030 |
| 14 | 0.049 | 0.044 | 0.036 | 0.034 |
| 16 | 0.054 | 0.049 | 0.041 | 0.038 |
| 20 | 0.066 | 0.059 | 0.049 | 0.046 |
Material Group P1 P2 P7 K1 P3 P4 M1 K2 K3 P5 M2 M3 K4 S1 S4 S2 S3 S5
ISO 513
| Hardness/Rm | ≤700 N/mm² | 600÷1000 N/mm² | ≤35 HRC | ≤40 HRC | ||
| ap x ae | D x D | D x D | 0.5D x D | 0.5D x D | ||
| Vc (m/min) | 85÷105 | 55÷75 | 40÷60 | 20÷40 |
| D | fz | fz | fz | fz |
| (mm) | (mm/z) | (mm/z) | (mm/z) | (mm/z) |
| 3 | 0.006 | 0.006 | 0.005 | 0.007 |
| DRILLING 4 | 0.008 | 0.007 | 0.007 | 0.009 |
| 5 | 0.010 | 0.009 | 0.008 | 0.011 |
| 6 | 0.012 | 0.011 | 0.010 | 0.013 |
| 8 | 0.016 | 0.014 | 0.013 | 0.017 |
| 10 | 0.019 | 0.017 | 0.015 | 0.021 |
| 12 | 0.022 | 0.019 | 0.017 | 0.024 |
| 14 | 0.024 | 0.022 | 0.019 | 0.027 |
| 16 | 0.027 | 0.024 | 0.022 | 0.030 |
| 20 | 0.033 | 0.030 | 0.026 | 0.036 |
ap x ae ≤ D5 0.5D x D 0.5D x D 0.25D x D 0.25D x D
INFO
CARBIDE DRILLS
PU-HPU TA-4HTA SUH ALH HRC SUH MINI HL HSD C-SD-TA
HSS DRILLS LFTA SUTA HSS-HSS/CO
CARBIDE END-MILLS
G2 MDTA HF VH/UP MEF ALU MEX/MH UH/MH
HSS END-MILLS
CARBIDE BURRS
PARAMETERS SUGGESTED WITH HIGH POWER MILLING CHUCK AND STABLE MACHINING CONDITION
