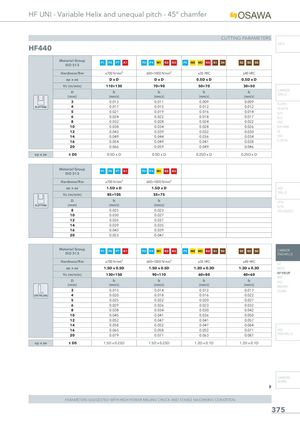

Общий каталог Osawa 2021 - страница 376
Навигация
Общий каталог Osawa 2018
HF UNI - Variable Helix and unequal pitch - 45° chamfer
CUTTING PARAMETERS
INFO
HF440
Material Group P1 P2 P7 K1 P3 P4 M1 K2 K3 P5 M2 M3 K4 S1 S4 S2 S3 S5
ISO 513
| Hardness/Rm | ≤700 N/mm² | 600÷1000 N/mm² | ≤35 HRC | ≤40 HRC | ||
| ap x ae | D x D | D x D | 0.5D x D | 0.5D x D | ||
| Vc (m/min) | 110÷130 | 70÷90 | 50÷70 | 30÷50 |
CARBIDE
D fz fz fz fz
DRILLS
| (mm) | (mm/z) | (mm/z) | (mm/z) | (mm/z) |
| 3 | 0.013 | 0.011 | 0.009 | 0.009 |
PU-HPU
SLOTTING 4 0.017 0.015 0.012 0.012
TA-4HTA
5 0.021 0.019 0.016 0.014
SUH
| 6 | 0.024 | 0.022 | 0.018 | 0.017 | ALH |
| 8 | 0.032 | 0.028 | 0.024 | 0.022 | HRC |
| 10 | 0.038 | 0.034 | 0.028 | 0.026 | SUH MINI |
| 12 | 0.043 | 0.039 | 0.032 | 0.030 | HL |
| 14 | 0.049 | 0.044 | 0.036 | 0.034 | HSD |
| 16 | 0.054 | 0.049 | 0.041 | 0.038 | C-SD-TA |
| 20 | 0.066 | 0.059 | 0.049 | 0.046 | |
| ap x ae ≤ D5 | 0.5D x D | 0.5D x D | 0.25D x D | 0.25D x D |
Material Group P1 P2 P7 K1 P3 P4 M1 K2 K3
ISO 513
Hardness/Rm ≤700 N/mm² 600÷1000 N/mm²
| ap x ae | 1.5D x D | 1.5D x D |
| Vc (m/min) | 85÷105 | 55÷75 |
| D | fz | fz |
| SLOTTING (mm) | (mm/z) | (mm/z) |
| 8 | 0.025 | 0.023 |
| 10 | 0.030 | 0.027 |
| 12 | 0.035 | 0.031 |
| 14 | 0.039 | 0.035 |
| 16 | 0.043 | 0.039 |
| 20 | 0.053 | 0.047 |
HSS DRILLS
LFTA SUTA HSS-HSS/CO
Material Group P1 P2 P7 K1 P3 P4 M1 K2 K3 P5 M2 M3 K4 S1 S4 S2 S3 S5 CARBIDE
ISO 513 END-MILLS
Hardness/Rm ≤700 N/mm² 600÷1000 N/mm² ≤35 HRC ≤40 HRC
G2
| ap x ae | 1.5D x 0.5D | 1.5D x 0.5D | 1.2D x 0.3D | 1.2D x 0.3D | MDTA | ||
| Vc (m/min) | 130÷150 | 90÷110 | 60÷80 | 40÷60 | HF VH/UP |
MEF
| D | fz | fz | fz | fz | ALU |
| (mm) | (mm/z) | (mm/z) | (mm/z) | (mm/z) |
MEX/MH
| 3 | 0.015 | 0.014 | 0.012 | 0.017 | UH/MH |
| SIDE MILLING 4 | 0.020 | 0.018 | 0.016 | 0.022 | |
| 5 | 0.025 | 0.022 | 0.020 | 0.027 | |
| 6 | 0.029 | 0.026 | 0.023 | 0.032 | |
| 8 | 0.038 | 0.034 | 0.030 | 0.042 | |
| 10 | 0.045 | 0.041 | 0.036 | 0.050 | |
| 12 | 0.052 | 0.047 | 0.041 | 0.057 | |
| 14 | 0.058 | 0.052 | 0.047 | 0.064 | |
| 16 | 0.065 | 0.058 | 0.052 | 0.071 | HSS |
| 20 | 0.079 | 0.071 | 0.063 | 0.087 | END-MILLS |
ap x ae ≤ D5 1.5D x 0.25D 1.5D x 0.25D 1.2D x 0.1D 1.2D x 0.1D
CARBIDE BURRS
PARAMETERS SUGGESTED WITH HIGH POWER MILLING CHUCK AND STABLE MACHINING CONDITION
