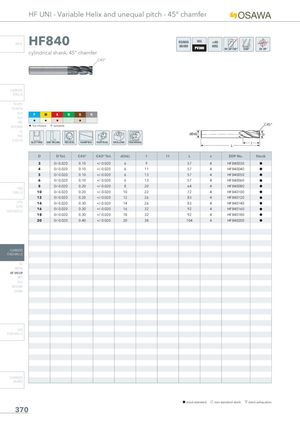

Общий каталог Osawa 2021 - страница 371

HF UNI - Variable Helix and unequal pitch - 45° chamfer

INFO HF840 OSAWA
NORM
cylindrical shank, 45° chamfer
C45°


CARBIDE
DRILLS

PU-HPU
TA-4HTA
SUH P M K N S H
ALH
H H H H
HRC
H 1st choice I suitable C45°
SUH MINI
HL
HSD
C-SD-TA
SLOTTING SIDE MILLING HELICAL RAMPING VERTICAL DRILLING TROCHOIDAL

D D Tol. C45° C45° Tol. d(h6) l l1 L z EDP No. Stock
3 0/-0.020 0.10 +/-0.020 6 9 57 4 HF840030 h
4 0/-0.020 0.10 +/-0.020 6 11 57 4 HF840040 h
5 0/-0.020 0.10 +/-0.020 6 13 57 4 HF840050 h
6 0/-0.020 0.10 +/-0.020 6 13 57 4 HF840060 h
8 0/-0.020 0.20 +/-0.020 8 20 64 4 HF840080 h
HSS
DRILLS 10 0/-0.020 0.20 +/-0.020 10 22 72 4 HF840100 h
12 0/-0.020 0.20 +/-0.020 12 26 83 4 HF840120 h
LFTA 14 0/-0.020 0.30 +/-0.020 14 26 83 4 HF840140 h
SUTA
16 0/-0.020 0.30 +/-0.020 16 32 92 4 HF840160 h
HSS-HSS/CO
18 0/-0.020 0.30 +/-0.020 18 32 92 4 HF840180 h
20 0/-0.020 0.40 +/-0.020 20 38 104 4 HF840200 h


CARBIDE
END-MILLS
G2
MDTA
HF VH/UP
MEF
ALU
MEX/MH
UH/MH


HSS
END-MILLS


CARBIDE
BURRS


h stock standard f non-standard stock m stock exhaustion
