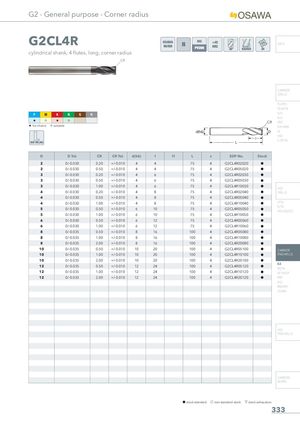

Общий каталог Osawa 2021 - страница 334

G2 - General purpose - Corner radius G2CL4R OSAWA NORM <45 HRC INFO cylindrical shank, 4 flutes, long, corner radius CR CARBIDE DRILLS PU-HPU TA-4HTA P M K N S H SUH ALH H I H I CR HRC H 1st choice I suitable SUH MINI HL HSD C-SD-TA SIDE MILLING D D Tol. CR CR Tol. d(h6) l l1 L z EDP No. Stock 2 0/-0.030 0.20 +/-0.010 4 4 75 4 G2CL4R02020 h 2 0/-0.030 0.50 +/-0.010 4 4 75 4 G2CL4R05020 h 3 0/-0.030 0.20 +/-0.010 4 6 75 4 G2CL4R02030 h 3 0/-0.030 0.50 +/-0.010 4 6 75 4 G2CL4R05030 h 3 0/-0.030 1.00 +/-0.010 4 6 75 4 G2CL4R10030 h HSS 4 0/-0.030 0.20 +/-0.010 4 8 75 4 G2CL4R02040 h DRILLS 4 0/-0.030 0.50 +/-0.010 4 8 75 4 G2CL4R05040 h 4 0/-0.030 1.00 +/-0.010 4 8 75 4 G2CL4R10040 h LFTA SUTA 5 0/-0.030 0.50 +/-0.010 6 10 75 4 G2CL4R05050 h HSS-HSS/CO 5 0/-0.030 1.00 +/-0.010 6 10 75 4 G2CL4R10050 h 6 0/-0.030 0.50 +/-0.010 6 12 75 4 G2CL4R05060 h 6 0/-0.030 1.00 +/-0.010 6 12 75 4 G2CL4R10060 h 8 0/-0.035 0.50 +/-0.010 8 16 100 4 G2CL4R05080 h 8 0/-0.035 1.00 +/-0.010 8 16 100 4 G2CL4R10080 h 8 0/-0.035 2.00 +/-0.010 8 16 100 4 G2CL4R20080 h 10 0/-0.035 0.50 +/-0.010 10 20 100 4 G2CL4R05100 h CARBIDE 10 0/-0.035 1.00 +/-0.010 10 20 100 4 G2CL4R10100 h END-MILLS 10 0/-0.035 2.00 +/-0.010 10 20 100 4 G2CL4R20100 h G2 12 0/-0.035 0.50 +/-0.010 12 24 100 4 G2CL4R05120 h MDTA 12 0/-0.035 1.00 +/-0.010 12 24 100 4 G2CL4R10120 h HF VH/UP 12 0/-0.035 2.00 +/-0.010 12 24 100 4 G2CL4R20120 h MEF ALU MEX/MH UH/MH HSS END-MILLS CARBIDE BURRS h stock standard f non-standard stock m stock exhaustion 333 Libro 1.indb 333 21/10/2021 12:12:36
