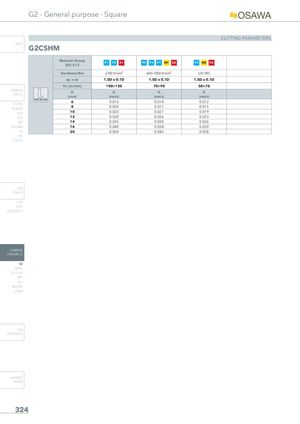

G2 - General purpose - Square CUTTING PARAMETERS INFO G2CSHM Material Group P1 P2 K1 P3 P4 P7 M1 K2 P5 M2 K3 ISO 513 Hardness/Rm ≤700 N/mm² 600÷1000 N/mm² ≤35 HRC ap x ae 1.5D x 0.1D 1.5D x 0.1D 1.5D x 0.1D Vc (m/min) 100÷120 70÷90 50÷70 CARBIDE D fz fz fz DRILLS (mm) (mm/z) (mm/z) (mm/z) SIDE MILLING 6 0.016 0.014 0.012 PU-HPU 8 0.020 0.017 0.015 TA-4HTA SUH 10 0.025 0.021 0.019 ALH 12 0.030 0.026 0.023 HRC 14 0.035 0.030 0.026 SUH MINI 16 0.040 0.034 0.030 HL 20 0.050 0.043 0.038 HSD C-SD-TA HSS DRILLS LFTA SUTA HSS-HSS/CO CARBIDE END-MILLS G2 MDTA HF VH/UP MEF ALU MEX/MH UH/MH HSS END-MILLS CARBIDE BURRS 324 Libro 1.indb 324 21/10/2021 12:12:28
