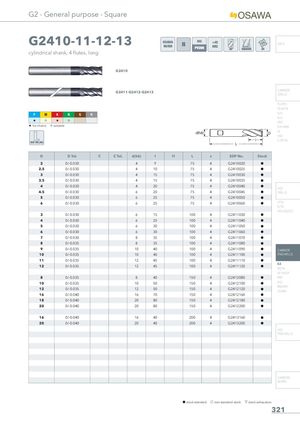

Общий каталог Osawa 2021 - страница 322

G2 - General purpose - Square G2410-11-12-13 OSAWA NORM <45 HRC INFO cylindrical shank, 4 flutes, long G2410 CARBIDE G2411-G2412-G2413 DRILLS PU-HPU TA-4HTA P M K N S H SUH ALH H I H I HRC H 1st choice I suitable SUH MINI HL HSD C-SD-TA SIDE MILLING D D Tol. C C Tol. d(h6) l l1 L z EDP No. Stock 2 0/-0.030 4 9 75 4 G2410020 h 2.5 0/-0.030 4 10 75 4 G2410025 h 3 0/-0.030 4 15 75 4 G2410030 h 3.5 0/-0.030 4 15 75 4 G2410035 h 4 0/-0.030 4 20 75 4 G2410040 h HSS 4.5 0/-0.030 6 20 75 4 G2410045 h DRILLS 5 0/-0.030 6 25 75 4 G2410050 h 6 0/-0.030 6 25 75 4 G2410060 h LFTA SUTA HSS-HSS/CO 3 0/-0.030 6 15 100 4 G2411030 h 4 0/-0.030 6 25 100 4 G2411040 h 5 0/-0.030 6 30 100 4 G2411050 h 6 0/-0.030 6 30 100 4 G2411060 h 7 0/-0.030 8 35 100 4 G2411070 h 8 0/-0.035 8 35 100 4 G2411080 h 9 0/-0.035 10 40 100 4 G2411090 h CARBIDE 10 0/-0.035 10 40 100 4 G2411100 h END-MILLS 11 0/-0.035 12 45 100 4 G2411110 h G2 12 0/-0.035 12 45 100 4 G2411120 h MDTA HF VH/UP 8 0/-0.035 8 40 150 4 G2412080 h MEF 10 0/-0.035 10 50 150 4 G2412100 h ALU MEX/MH 12 0/-0.035 12 50 150 4 G2412120 h UH/MH 16 0/-0.040 16 70 150 4 G2412160 h 18 0/-0.040 20 80 150 4 G2412180 h 20 0/-0.040 20 80 150 4 G2412200 h 16 0/-0.040 16 40 200 4 G2413160 h 20 0/-0.040 20 40 200 4 G2413200 h HSS END-MILLS CARBIDE BURRS h stock standard f non-standard stock m stock exhaustion 321 Libro 1.indb 321 21/10/2021 12:12:25
