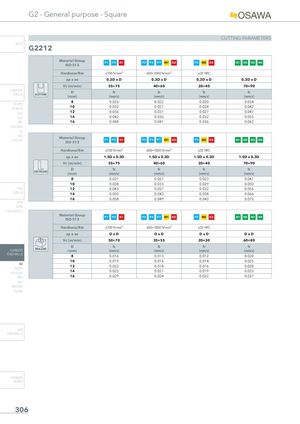

G2 - General purpose - Square CUTTING PARAMETERS INFO G2212 Material Group P1 P2 K1 P3 P4 P7 M1 K2 P5 M2 K3 N1 N2 N3 N4 ISO 513 Hardness/Rm ≤700 N/mm² 600÷1000 N/mm² ≤35 HRC ap x ae 0.3D x D 0.3D x D 0.3D x D 0.3D x D Vc (m/min) 55÷75 40÷60 20÷40 70÷90 CARBIDE D fz fz fz fz DRILLS SLOTTING (mm) (mm/z) (mm/z) (mm/z) (mm/z) 8 0.026 0.022 0.020 0.034 PU-HPU 10 0.032 0.027 0.024 0.042 TA-4HTA SUH 12 0.036 0.031 0.027 0.047 ALH 14 0.042 0.036 0.032 0.055 HRC 16 0.048 0.041 0.036 0.062 SUH MINI HL HSD Material Group P1 P2 K1 P3 P4 P7 M1 K2 P5 M2 K3 N1 N2 N3 N4 C-SD-TA ISO 513 Hardness/Rm ≤700 N/mm² 600÷1000 N/mm² ≤35 HRC ap x ae 1.5D x 0.3D 1.5D x 0.3D 1.5D x 0.3D 1.5D x 0.3D Vc (m/min) 55÷75 40÷60 20÷40 70÷90 D fz fz fz fz SIDE MILLING (mm) (mm/z) (mm/z) (mm/z) (mm/z) 8 0.031 0.027 0.023 0.041 10 0.038 0.033 0.029 0.050 HSS 12 0.043 0.037 0.032 0.056 DRILLS 14 0.050 0.043 0.038 0.066 16 0.058 0.049 0.043 0.075 LFTA SUTA HSS-HSS/CO Material Group P1 P2 K1 P3 P4 P7 M1 K2 P5 M2 K3 N1 N2 N3 N4 ISO 513 Hardness/Rm ≤700 N/mm² 600÷1000 N/mm² ≤35 HRC ap x ae DxD DxD DxD DxD Vc (m/min) 50÷70 35÷55 20÷30 60÷80 D fz fz fz fz CARBIDE DRILLING (mm) (mm/z) (mm/z) (mm/z) (mm/z) END-MILLS 8 0.016 0.013 0.012 0.020 10 0.019 0.016 0.014 0.025 G2 12 0.022 0.018 0.016 0.028 MDTA 14 0.025 0.021 0.019 0.033 HF VH/UP MEF 16 0.029 0.024 0.022 0.037 ALU MEX/MH UH/MH HSS END-MILLS CARBIDE BURRS 306 Libro 1.indb 306 21/10/2021 12:12:11
