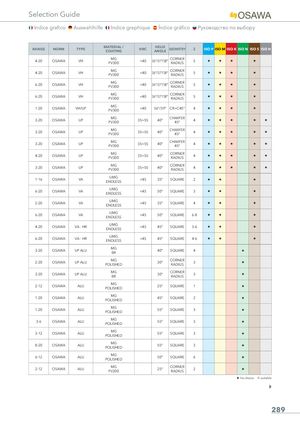

Selection Guide Indice grafico Auswahlhilfe Indice graphique Índice gráfico Руководство по выбору MATERIAL / HELIX RANGE NORM TYPE HRC GEOMETRY Z ISO P ISO M ISO K ISO N ISO S ISO H COATING ANGLE MG CORNER 4-20 OSAWA VH <40 36°/37°/38° 5 H H H H PV300 RADIUS MG CORNER 4-20 OSAWA VH <40 36°/37°/38° 5 H H H H PV300 RADIUS MG CORNER 6-20 OSAWA VH <40 36°/37°/38° 5 H H H H PV300 RADIUS MG CORNER 6-20 OSAWA VH <40 36°/37°/38° 5 H H H H PV300 RADIUS MG 1-20 OSAWA VH/UP <40 36°/39° CR+C45° 4 H H H H PV300 MG CHAMFER 3-20 OSAWA UP 35÷55 40° 4 H H H H H PV300 45° MG CHAMFER 3-20 OSAWA UP 35÷55 40° 4 H H H H H PV300 45° MG CHAMFER 3-20 OSAWA UP 35÷55 40° 4 H H H H H PV300 45° MG CORNER 4-20 OSAWA UP 35÷55 40° 4 H H H H H PV300 RADIUS MG CORNER 3-20 OSAWA UP 35÷55 40° 4 H H H H H PV300 RADIUS UMG 1-16 OSAWA VA <45 35° SQUARE 2 H H H ENDLESS UMG 6-20 OSAWA VA <45 50° SQUARE 3 H H H ENDLESS UMG 2-20 OSAWA VA <45 35° SQUARE 4 H H H ENDLESS UMG 6-20 OSAWA VA <45 50° SQUARE 6-8 H H H ENDLESS UMG 4-20 OSAWA VA - HR <45 45° SQUARE 3-6 H H H ENDLESS UMG 6-20 OSAWA VA - HR <45 45° SQUARE 4-6 H H H ENDLESS MG 3-20 OSAWA UP ALU 40° SQUARE 4 H BR MG CORNER 2-20 OSAWA UP ALU 30° 3 H POLISHED RADIUS MG CORNER 3-20 OSAWA UP ALU 30° 3 H BR RADIUS MG 2-12 OSAWA ALU 25° SQUARE 1 H POLISHED MG 1-20 OSAWA ALU 45° SQUARE 2 H POLISHED MG 1-20 OSAWA ALU 55° SQUARE 3 H POLISHED MG 3-6 OSAWA ALU 55° SQUARE 3 H POLISHED MG 3-12 OSAWA ALU 55° SQUARE 3 H POLISHED MG 8-20 OSAWA ALU 55° SQUARE 3 H POLISHED MG 6-12 OSAWA ALU 50° SQUARE 6 H POLISHED MG CORNER 2-12 OSAWA ALU 25° 2 H PV200 RADIUS H 1st choice I suitable 289 Libro 1.indb 289 21/10/2021 12:11:35
