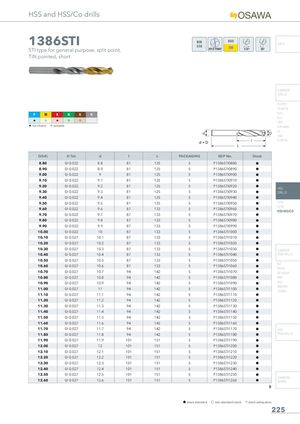

Общий каталог Osawa 2021 - страница 226
Навигация
Общий каталог Osawa 2018
HSS and HSS/Co drills
1386STI
STI type for general purpose, split point,
TiN pointed, short
DIN 338 INFO
CARBIDE DRILLS
PU-HPU
| P M | K N | S H |
| H I | H I | I |
| H1st choiceI | suitable |
TA-4HTA SUH ALH HRC H 1st choice I suitable SUH MINI HL HSD C-SD-TA
| D(h8) | D Tol. | d | l | L | PACKAGING | EDP No. | Stock | |
| 8.80 | 0/-0.022 | 8.8 | 81 | 125 | 5 | P1386STI0880 | h | |
| 8.90 | 0/-0.022 | 8.9 | 81 | 125 | 5 | P1386STI0890 | h | |
| 9.00 | 0/-0.022 | 9 | 81 | 125 | 5 | P1386STI0900 | h | |
| 9.10 | 0/-0.022 | 9.1 | 81 | 125 | 5 | P1386STI0910 | h | |
| 9.20 | 0/-0.022 | 9.2 | 81 | 125 | 5 | P1386STI0920 | h | HSS |
| 9.30 | 0/-0.022 | 9.3 | 81 | 125 | 5 | P1386STI0930 | h | DRILLS |
| 9.40 | 0/-0.022 | 9.4 | 81 | 125 | 5 | P1386STI0940 | h | |
| 9.50 | 0/-0.022 | 9.5 | 81 | 125 | 5 | P1386STI0950 | h | LFTA |
| 9.60 | 0/-0.022 | 9.6 | 87 | 133 | 5 | P1386STI0960 | h | SUTA HSS-HSS/C |
| 9.70 | 0/-0.022 | 9.7 | 87 | 133 | 5 | P1386STI0970 | h | |
| 9.80 | 0/-0.022 | 9.8 | 87 | 133 | 5 | P1386STI0980 | h | |
| 9.90 | 0/-0.022 | 9.9 | 87 | 133 | 5 | P1386STI0990 | h | |
| 10.00 | 0/-0.022 | 10 | 87 | 133 | 5 | P1386STI1000 | h | |
| 10.10 | 0/-0.027 | 10.1 | 87 | 133 | 5 | P1386STI1010 | h | |
| 10.20 | 0/-0.027 | 10.2 | 87 | 133 | 5 | P1386STI1020 | h | |
| 10.30 | 0/-0.027 | 10.3 | 87 | 133 | 5 | P1386STI1030 | h | CARBIDE |
| 10.40 | 0/-0.027 | 10.4 | 87 | 133 | 5 | P1386STI1040 | h | END-MILLS |
| 10.50 | 0/-0.027 | 10.5 | 87 | 133 | 5 | P1386STI1050 | h | |
| 10.60 | 0/-0.027 | 10.6 | 87 | 133 | 5 | P1386STI1060 | h | G2 MDTA |
| 10.70 | 0/-0.027 | 10.7 | 94 | 142 | 5 | P1386STI1070 | h | HF VH/UP |
| 10.80 | 0/-0.027 | 10.8 | 94 | 142 | 5 | P1386STI1080 | h | MEF |
| 10.90 | 0/-0.027 | 10.9 | 94 | 142 | 5 | P1386STI1090 | h | ALU |
| 11.00 | 0/-0.027 | 11 | 94 | 142 | 5 | P1386STI1100 | h | MEX/MH UH/MH |
| 11.10 | 0/-0.027 | 11.1 | 94 | 142 | 5 | P1386STI1110 | h | |
| 11.20 | 0/-0.027 | 11.2 | 94 | 142 | 5 | P1386STI1120 | h | |
| 11.30 | 0/-0.027 | 11.3 | 94 | 142 | 5 | P1386STI1130 | h | |
| 11.40 | 0/-0.027 | 11.4 | 94 | 142 | 5 | P1386STI1140 | h | |
| 11.50 | 0/-0.027 | 11.5 | 94 | 142 | 5 | P1386STI1150 | h | |
| 11.60 | 0/-0.027 | 11.6 | 94 | 142 | 5 | P1386STI1160 | h | |
| 11.70 | 0/-0.027 | 11.7 | 94 | 142 | 5 | P1386STI1170 | h | HSS |
| 11.80 | 0/-0.027 | 11.8 | 94 | 142 | 5 | P1386STI1180 | h | END-MILLS |
| 11.90 | 0/-0.027 | 11.9 | 101 | 151 | 5 | P1386STI1190 | h | |
| 12.00 | 0/-0.027 | 12 | 101 | 151 | 5 | P1386STI1200 | h | |
| 12.10 | 0/-0.027 | 12.1 | 101 | 151 | 5 | P1386STI1210 | h | |
| 12.20 | 0/-0.027 | 12.2 | 101 | 151 | 5 | P1386STI1220 | h | |
| 12.30 | 0/-0.027 | 12.3 | 101 | 151 | 5 | P1386STI1230 | h | |
| 12.40 | 0/-0.027 | 12.4 | 101 | 151 | 5 | P1386STI1240 | h | |
| 12.50 | 0/-0.027 | 12.5 | 101 | 151 | 5 | P1386STI1250 | h | |
| 12.60 | 0/-0.027 | 12.6 | 101 | 151 | 5 | P1386STI1260 | h | CARBIDE BURRS |
