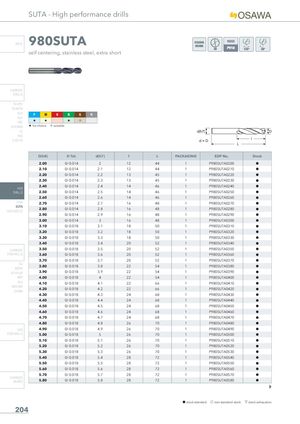

Общий каталог Osawa 2021 - страница 205
Навигация
Общий каталог Osawa 2018
SUTA - High performance drills
980SUTA
OSAWA INFO NORM
self centering, stainless steel, extra-short
CARBIDE DRILLS
PU-HPU TA-4HTA SUH ALH HRC SUH MINI HL HSD C-SD-TA
| P | M | K | N | S | H |
| H | H | H | I |
H 1st choice I suitable
| D(h8) | D Tol. | d(h7) | l | L | PACKAGING | EDP No. | Stock | |
| 2.00 | 0/-0.014 | 2 | 12 | 44 | 1 | P980SUTA0200 | h | |
| 2.10 | 0/-0.014 | 2.1 | 12 | 44 | 1 | P980SUTA0210 | h | |
| 2.20 | 0/-0.014 | 2.2 | 13 | 45 | 1 | P980SUTA0220 | h | |
| 2.30 | 0/-0.014 | 2.3 | 13 | 45 | 1 | P980SUTA0230 | h | |
| HSS | 2.40 | 0/-0.014 | 2.4 | 14 | 46 | 1 | P980SUTA0240 | h |
| ILLS | 2.50 | 0/-0.014 | 2.5 | 14 | 46 | 1 | P980SUTA0250 | h |
| 2.60 | 0/-0.014 | 2.6 | 14 | 46 | 1 | P980SUTA0260 | h | |
| LFTA TA | 2.70 | 0/-0.014 | 2.7 | 16 | 48 | 1 | P980SUTA0270 | h |
| U /CO | 2.80 | 0/-0.014 | 2.8 | 16 | 48 | 1 | P980SUTA0280 | h |
| 2.90 | 0/-0.014 | 2.9 | 16 | 48 | 1 | P980SUTA0290 | h | |
| 3.00 | 0/-0.014 | 3 | 16 | 48 | 1 | P980SUTA0300 | h | |
| 3.10 | 0/-0.018 | 3.1 | 18 | 50 | 1 | P980SUTA0310 | h | |
| 3.20 | 0/-0.018 | 3.2 | 18 | 50 | 1 | P980SUTA0320 | h | |
| 3.30 | 0/-0.018 | 3.3 | 18 | 50 | 1 | P980SUTA0330 | h | |
| 3.40 | 0/-0.018 | 3.4 | 20 | 52 | 1 | P980SUTA0340 | h | |
| IDE | 3.50 | 0/-0.018 | 3.5 | 20 | 52 | 1 | P980SUTA0350 | h |
| ILLS | 3.60 | 0/-0.018 | 3.6 | 20 | 52 | 1 | P980SUTA0360 | h |
| 3.70 | 0/-0.018 | 3.7 | 20 | 52 | 1 | P980SUTA0370 | h | |
| G2 DTA | 3.80 | 0/-0.018 | 3.8 | 22 | 54 | 1 | P980SUTA0380 | h |
| H/UP | 3.90 | 0/-0.018 | 3.9 | 22 | 54 | 1 | P980SUTA0390 | h |
| MEF | 4.00 | 0/-0.018 | 4 | 22 | 54 | 1 | P980SUTA0400 | h |
| ALU | 4.10 | 0/-0.018 | 4.1 | 22 | 66 | 1 | P980SUTA0410 | h |
| /MH /MH | 4.20 | 0/-0.018 | 4.2 | 22 | 66 | 1 | P980SUTA0420 | h |
| 4.30 | 0/-0.018 | 4.3 | 24 | 68 | 1 | P980SUTA0430 | h | |
| 4.40 | 0/-0.018 | 4.4 | 24 | 68 | 1 | P980SUTA0440 | h | |
| 4.50 | 0/-0.018 | 4.5 | 24 | 68 | 1 | P980SUTA0450 | h | |
| 4.60 | 0/-0.018 | 4.6 | 24 | 68 | 1 | P980SUTA0460 | h | |
| 4.70 | 0/-0.018 | 4.7 | 24 | 68 | 1 | P980SUTA0470 | h | |
| 4.80 | 0/-0.018 | 4.8 | 26 | 70 | 1 | P980SUTA0480 | h | |
| HSS | 4.90 | 0/-0.018 | 4.9 | 26 | 70 | 1 | P980SUTA0490 | h |
| ILLS | 5.00 | 0/-0.018 | 5 | 26 | 70 | 1 | P980SUTA0500 | h |
| 5.10 | 0/-0.018 | 5.1 | 26 | 70 | 1 | P980SUTA0510 | h | |
| 5.20 | 0/-0.018 | 5.2 | 26 | 70 | 1 | P980SUTA0520 | h | |
| 5.30 | 0/-0.018 | 5.3 | 26 | 70 | 1 | P980SUTA0530 | h | |
| 5.40 | 0/-0.018 | 5.4 | 28 | 72 | 1 | P980SUTA0540 | h | |
| 5.50 | 0/-0.018 | 5.5 | 28 | 72 | 1 | P980SUTA0550 | h | |
| 5.60 | 0/-0.018 | 5.6 | 28 | 72 | 1 | P980SUTA0560 | h | |
| 5.70 | 0/-0.018 | 5.7 | 28 | 72 | 1 | P980SUTA0570 | h | |
| IDE | 5.80 | 0/-0.018 | 5.8 | 28 | 72 | 1 | P980SUTA0580 | h |
