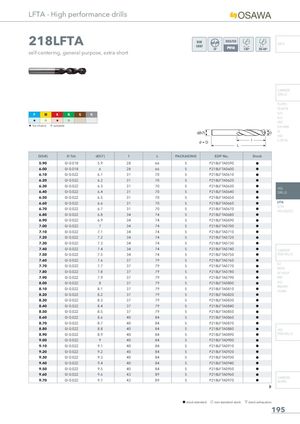

Общий каталог Osawa 2021 - страница 196
Навигация
Общий каталог Osawa 2018
LFTA - High performance drills
218LFTA
self-centering, general purpose, extra-short
DIN 1897 INFO
CARBIDE DRILLS
PU-HPU
| P M | K N | S H |
| H I | H I | |
| H1st choiceI | suitable |
TA-4HTA SUH ALH HRC H 1st choice I suitable SUH MINI HL HSD C-SD-TA
| D(h8) | D Tol. | d(h7) | l | L | PACKAGING | EDP No. | Stock | |
| 5.90 | 0/-0.018 | 5.9 | 28 | 66 | 5 | P218LFTA0590 | h | |
| 6.00 | 0/-0.018 | 6 | 28 | 66 | 5 | P218LFTA0600 | h | |
| 6.10 | 0/-0.022 | 6.1 | 31 | 70 | 5 | P218LFTA0610 | h | |
| 6.20 | 0/-0.022 | 6.2 | 31 | 70 | 5 | P218LFTA0620 | h | |
| 6.30 | 0/-0.022 | 6.3 | 31 | 70 | 5 | P218LFTA0630 | h | HSS |
| 6.40 | 0/-0.022 | 6.4 | 31 | 70 | 5 | P218LFTA0640 | h | DRILLS |
| 6.50 | 0/-0.022 | 6.5 | 31 | 70 | 5 | P218LFTA0650 | h | |
| 6.60 | 0/-0.022 | 6.6 | 31 | 70 | 5 | P218LFTA0660 | h | LFTA |
| 6.70 | 0/-0.022 | 6.7 | 31 | 70 | 5 | P218LFTA0670 | h | SUTA HSSHSS/CO |
| 6.80 | 0/-0.022 | 6.8 | 34 | 74 | 5 | P218LFTA0680 | h | - |
| 6.90 | 0/-0.022 | 6.9 | 34 | 74 | 5 | P218LFTA0690 | h | |
| 7.00 | 0/-0.022 | 7 | 34 | 74 | 5 | P218LFTA0700 | h | |
| 7.10 | 0/-0.022 | 7.1 | 34 | 74 | 5 | P218LFTA0710 | h | |
| 7.20 | 0/-0.022 | 7.2 | 34 | 74 | 5 | P218LFTA0720 | h | |
| 7.30 | 0/-0.022 | 7.3 | 34 | 74 | 5 | P218LFTA0730 | h | |
| 7.40 | 0/-0.022 | 7.4 | 34 | 74 | 5 | P218LFTA0740 | h | CARBIDE |
| 7.50 | 0/-0.022 | 7.5 | 34 | 74 | 5 | P218LFTA0750 | h | END-MILLS |
| 7.60 | 0/-0.022 | 7.6 | 37 | 79 | 5 | P218LFTA0760 | h | |
| 7.70 | 0/-0.022 | 7.7 | 37 | 79 | 5 | P218LFTA0770 | h | G2 MDTA |
| 7.80 | 0/-0.022 | 7.8 | 37 | 79 | 5 | P218LFTA0780 | h | HF VH/UP |
| 7.90 | 0/-0.022 | 7.9 | 37 | 79 | 5 | P218LFTA0790 | h | MEF |
| 8.00 | 0/-0.022 | 8 | 37 | 79 | 5 | P218LFTA0800 | h | ALU |
| 8.10 | 0/-0.022 | 8.1 | 37 | 79 | 5 | P218LFTA0810 | h | MEX/MH UH/MH |
| 8.20 | 0/-0.022 | 8.2 | 37 | 79 | 5 | P218LFTA0820 | h | |
| 8.30 | 0/-0.022 | 8.3 | 37 | 79 | 5 | P218LFTA0830 | h | |
| 8.40 | 0/-0.022 | 8.4 | 37 | 79 | 5 | P218LFTA0840 | h | |
| 8.50 | 0/-0.022 | 8.5 | 37 | 79 | 5 | P218LFTA0850 | h | |
| 8.60 | 0/-0.022 | 8.6 | 40 | 84 | 5 | P218LFTA0860 | h | |
| 8.70 | 0/-0.022 | 8.7 | 40 | 84 | 5 | P218LFTA0870 | h | |
| 8.80 | 0/-0.022 | 8.8 | 40 | 84 | 5 | P218LFTA0880 | h | HSS |
| 8.90 | 0/-0.022 | 8.9 | 40 | 84 | 5 | P218LFTA0890 | h | END-MILLS |
| 9.00 | 0/-0.022 | 9 | 40 | 84 | 5 | P218LFTA0900 | h | |
| 9.10 | 0/-0.022 | 9.1 | 40 | 84 | 5 | P218LFTA0910 | h | |
| 9.20 | 0/-0.022 | 9.2 | 40 | 84 | 5 | P218LFTA0920 | h | |
| 9.30 | 0/-0.022 | 9.3 | 40 | 84 | 5 | P218LFTA0930 | h | |
| 9.40 | 0/-0.022 | 9.4 | 40 | 84 | 5 | P218LFTA0940 | h | |
| 9.50 | 0/-0.022 | 9.5 | 40 | 84 | 5 | P218LFTA0950 | h | |
| 9.60 | 0/-0.022 | 9.6 | 43 | 89 | 5 | P218LFTA0960 | h | |
| 9.70 | 0/-0.022 | 9.7 | 43 | 89 | 5 | P218LFTA0970 | h | CARBIDE BURRS |
