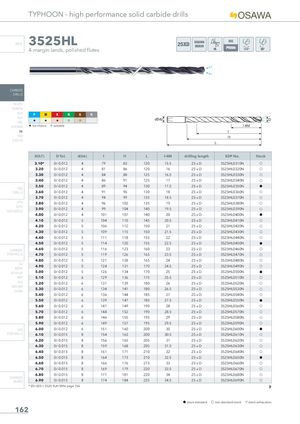

TYPHOON - high performance solid carbide drills
3525HL
25XD OSAWA INFO NORM 4-margin lands, polished flutes 135°
CARBIDE DRILLS
PU-HPU
| P M | K N | S H |
| H H | H I | I |
| H1st choiceI | suitable |
HRC H 1st choice I suitable SUH MINI HL HSD C-SD-TA
| D(h7) | D Tol. | d(h6) | l | l1 | L | l-4M | drilling length | EDP No. | Stock |
| 3.10 | 0/-0.012 | 4 | 79 | 83 | 120 | 15.5 | 25 x D | 3525HL0310N | f |
| 3.20 | 0/-0.012 | 4 | 81 | 86 | 120 | 16 | 25 x D | 3525HL0320N | f |
| 3.30 | 0/-0.012 | 4 | 84 | 88 | 125 | 16.5 | 25 x D | 3525HL0330N | f |
| 3.40 | 0/-0.012 | 4 | 86 | 91 | 125 | 17 | 25 x D | 3525HL0340N | f |
| 3.50 | 0/-0.012 | 4 | 89 | 94 | 130 | 17.5 | 25 x D | 3525HL0350N | h |
| 3.60 | 0/-0.012 | 4 | 91 | 96 | 130 | 18 | 25 x D | 3525HL0360N | f |
| 3.70 | 0/-0.012 | 4 | 94 | 99 | 135 | 18.5 | 25 x D | 3525HL0370N | f |
| 3.80 | 0/-0.012 | 4 | 96 | 102 | 135 | 19 | 25 x D | 3525HL0380N | f |
| 3.90 | 0/-0.012 | 4 | 99 | 104 | 140 | 19.5 | 25 x D | 3525HL0390N | f |
| 4.00 | 0/-0.012 | 4 | 101 | 107 | 140 | 20 | 25 x D | 3525HL0400N | h |
| 4.10 | 0/-0.012 | 5 | 104 | 110 | 145 | 20.5 | 25 x D | 3525HL0410N | f |
| 4.20 | 0/-0.012 | 5 | 106 | 112 | 150 | 21 | 25 x D | 3525HL0420N | f |
| 4.30 | 0/-0.012 | 5 | 109 | 115 | 150 | 21.5 | 25 x D | 3525HL0430N | f |
| 4.40 | 0/-0.012 | 5 | 111 | 118 | 155 | 22 | 25 x D | 3525HL0440N | f |
| 4.50 | 0/-0.012 | 5 | 114 | 120 | 155 | 22.5 | 25 x D | 3525HL0450N | h |
| 4.60 | 0/-0.012 | 5 | 116 | 123 | 160 | 23 | 25 x D | 3525HL0460N | f |
| 4.70 | 0/-0.012 | 5 | 119 | 126 | 165 | 23.5 | 25 x D | 3525HL0470N | f |
| 4.80 | 0/-0.012 | 5 | 121 | 128 | 165 | 24 | 25 x D | 3525HL0480N | f |
| 4.90 | 0/-0.012 | 5 | 124 | 131 | 170 | 24.5 | 25 x D | 3525HL0490N | f |
| 5.00 | 0/-0.012 | 5 | 126 | 134 | 170 | 25 | 25 x D | 3525HL0500N | h |
| 5.10 | 0/-0.012 | 6 | 129 | 136 | 175 | 25.5 | 25 x D | 3525HL0510N | f |
| 5.20 | 0/-0.012 | 6 | 131 | 139 | 180 | 26 | 25 x D | 3525HL0520N | f |
| 5.30 | 0/-0.012 | 6 | 134 | 141 | 180 | 26.5 | 25 x D | 3525HL0530N | f |
| 5.40 | 0/-0.012 | 6 | 136 | 144 | 185 | 27 | 25 x D | 3525HL0540N | f |
| 5.50 | 0/-0.012 | 6 | 139 | 147 | 185 | 27.5 | 25 x D | 3525HL0550N | h |
| 5.60 | 0/-0.012 | 6 | 141 | 149 | 190 | 28 | 25 x D | 3525HL0560N | f |
| 5.70 | 0/-0.012 | 6 | 144 | 152 | 190 | 28.5 | 25 x D | 3525HL0570N | f |
| 5.80 | 0/-0.012 | 6 | 146 | 155 | 195 | 29 | 25 x D | 3525HL0580N | f |
| 5.90 | 0/-0.012 | 6 | 149 | 157 | 195 | 29.5 | 25 x D | 3525HL0590N | f |
| 6.00 | 0/-0.012 | 6 | 151 | 160 | 200 | 30 | 25 x D | 3525HL0600N | h |
| 6.10 | 0/-0.015 | 8 | 154 | 163 | 200 | 30.5 | 25 x D | 3525HL0610N | f |
| 6.20 | 0/-0.015 | 8 | 156 | 165 | 205 | 31 | 25 x D | 3525HL0620N | f |
| 6.30 | 0/-0.015 | 8 | 159 | 168 | 205 | 31.5 | 25 x D | 3525HL0630N | f |
| 6.40 | 0/-0.015 | 8 | 161 | 171 | 210 | 32 | 25 x D | 3525HL0640N | f |
| 6.50 | 0/-0.015 | 8 | 164 | 173 | 210 | 32.5 | 25 x D | 3525HL0650N | h |
| 6.60 | 0/-0.015 | 8 | 166 | 176 | 215 | 33 | 25 x D | 3525HL0660N | f |
| 6.70 | 0/-0.015 | 8 | 169 | 179 | 220 | 33.5 | 25 x D | 3525HL0670N | f |
| 6.80 | 0/-0.015 | 8 | 171 | 181 | 220 | 34 | 25 x D | 3525HL0680N | f |
| 6.90 | 0/-0.015 | 8 | 174 | 184 | 225 | 34.5 | 25 x D | 3525HL0690N | f |
