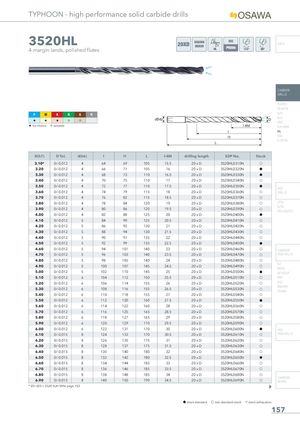

TYPHOON - high performance solid carbide drills
3520HL
20XD OSAWA NORM INFO 4-margin lands, polished flutes 135°
CARBIDE DRILLS
PU-HPU
| P M | K N | S H | |||||||
| H H | H I | I | |||||||
| H1st choice | Isuitable | ||||||||
| D(h7) | D Tol. | d(h6) | l | l1 | L | l-4M | drilling length | EDP No. | Stock |
| 3.10 | 0/-0.012 | 4 | 64 | 69 | 105 | 15.5 | 20 x D | 3520HL0310N | f |
| 3.20 | 0/-0.012 | 4 | 66 | 71 | 105 | 16 | 20 x D | 3520HL0320N | h |
| 3.30 | 0/-0.012 | 4 | 68 | 73 | 110 | 16.5 | 20 x D | 3520HL0330N | h |
| 3.40 | 0/-0.012 | 4 | 70 | 75 | 110 | 17 | 20 x D | 3520HL0340N | f |
| 3.50 | 0/-0.012 | 4 | 72 | 77 | 110 | 17.5 | 20 x D | 3520HL0350N | h |
| 3.60 | 0/-0.012 | 4 | 74 | 79 | 115 | 18 | 20 x D | 3520HL0360N | f |
| 3.70 | 0/-0.012 | 4 | 76 | 82 | 115 | 18.5 | 20 x D | 3520HL0370N | f |
| 3.80 | 0/-0.012 | 4 | 78 | 84 | 120 | 19 | 20 x D | 3520HL0380N | f |
| 3.90 | 0/-0.012 | 4 | 80 | 86 | 120 | 19.5 | 20 x D | 3520HL0390N | f |
| 4.00 | 0/-0.012 | 4 | 82 | 88 | 125 | 20 | 20 x D | 3520HL0400N | h |
| 4.10 | 0/-0.012 | 5 | 84 | 90 | 125 | 20.5 | 20 x D | 3520HL0410N | f |
| 4.20 | 0/-0.012 | 5 | 86 | 92 | 130 | 21 | 20 x D | 3520HL0420N | f |
| 4.30 | 0/-0.012 | 5 | 88 | 94 | 130 | 21.5 | 20 x D | 3520HL0430N | f |
| 4.40 | 0/-0.012 | 5 | 90 | 97 | 135 | 22 | 20 x D | 3520HL0440N | f |
| 4.50 | 0/-0.012 | 5 | 92 | 99 | 135 | 22.5 | 20 x D | 3520HL0450N | h |
| 4.60 | 0/-0.012 | 5 | 94 | 101 | 140 | 23 | 20 x D | 3520HL0460N | f |
| 4.70 | 0/-0.012 | 5 | 96 | 103 | 140 | 23.5 | 20 x D | 3520HL0470N | f |
| 4.80 | 0/-0.012 | 5 | 98 | 105 | 140 | 24 | 20 x D | 3520HL0480N | f |
| 4.90 | 0/-0.012 | 5 | 100 | 107 | 145 | 24.5 | 20 x D | 3520HL0490N | f |
| 5.00 | 0/-0.012 | 5 | 102 | 110 | 145 | 25 | 20 x D | 3520HL0500N | h |
| 5.10 | 0/-0.012 | 6 | 104 | 112 | 150 | 25.5 | 20 x D | 3520HL0510N | f |
| 5.20 | 0/-0.012 | 6 | 106 | 114 | 155 | 26 | 20 x D | 3520HL0520N | f |
| 5.30 | 0/-0.012 | 6 | 108 | 116 | 155 | 26.5 | 20 x D | 3520HL0530N | f |
| 5.40 | 0/-0.012 | 6 | 110 | 118 | 155 | 27 | 20 x D | 3520HL0540N | f |
| 5.50 | 0/-0.012 | 6 | 112 | 120 | 160 | 27.5 | 20 x D | 3520HL0550N | h |
| 5.60 | 0/-0.012 | 6 | 114 | 122 | 160 | 28 | 20 x D | 3520HL0560N | f |
| 5.70 | 0/-0.012 | 6 | 116 | 125 | 165 | 28.5 | 20 x D | 3520HL0570N | f |
| 5.80 | 0/-0.012 | 6 | 118 | 127 | 165 | 29 | 20 x D | 3520HL0580N | f |
| 5.90 | 0/-0.012 | 6 | 120 | 129 | 170 | 29.5 | 20 x D | 3520HL0590N | f |
| 6.00 | 0/-0.012 | 6 | 122 | 131 | 170 | 30 | 20 x D | 3520HL0600N | h |
| 6.10 | 0/-0.015 | 8 | 124 | 133 | 170 | 30.5 | 20 x D | 3520HL0610N | f |
| 6.20 | 0/-0.015 | 8 | 126 | 135 | 175 | 31 | 20 x D | 3520HL0620N | f |
| 6.30 | 0/-0.015 | 8 | 128 | 137 | 175 | 31.5 | 20 x D | 3520HL0630N | f |
| 6.40 | 0/-0.015 | 8 | 130 | 140 | 180 | 32 | 20 x D | 3520HL0640N | f |
| 6.50 | 0/-0.015 | 8 | 132 | 142 | 180 | 32.5 | 20 x D | 3520HL0650N | h |
| 6.60 | 0/-0.015 | 8 | 134 | 144 | 185 | 33 | 20 x D | 3520HL0660N | f |
| 6.70 | 0/-0.015 | 8 | 136 | 146 | 185 | 33.5 | 20 x D | 3520HL0670N | f |
| 6.80 | 0/-0.015 | 8 | 138 | 148 | 185 | 34 | 20 x D | 3520HL0680N | f |
| 6.90 | 0/-0.015 | 8 | 140 | 150 | 190 | 34.5 | 20 x D | 3520HL0690N | f |
