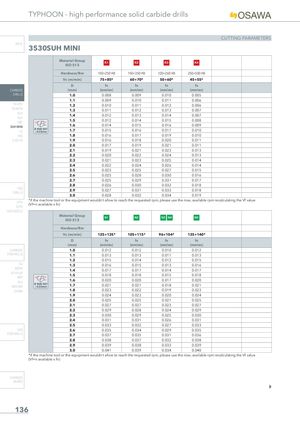

TYPHOON - high performance solid carbide drills CUTTING PARAMETERS INFO 3530SUH MINI Material Group K1 K2 K3 K4 ISO 513 Hardness/Rm 150÷250 HB 150÷350 HB 120÷260 HB 250÷500 HB Vc (m/min) 75÷85* 60÷70* 50÷60* 45÷55* D fn fn fn fn CARBIDE (mm) (mm/rev) (mm/rev) (mm/rev) (mm/rev) DRILLS 1.0 0.008 0.009 0.010 0.005 1.1 0.009 0.010 0.011 0.006 PU-HPU 1.2 0.010 0.011 0.012 0.006 TA-4HTA 1.3 0.011 0.012 0.013 0.007 SUH 1.4 0.012 0.013 0.014 0.007 ALH 1.5 0.012 0.014 0.015 0.008 HRC SUH MINI 1.6 0.014 0.015 0.016 0.009 Ø RUN OUT 1.7 0.015 0.016 0.017 0.010 HL <0.02mm HSD 1.8 0.016 0.017 0.019 0.010 C-SD-TA 1.9 0.016 0.018 0.020 0.011 2.0 0.017 0.019 0.021 0.011 2.1 0.019 0.021 0.023 0.013 2.2 0.020 0.022 0.024 0.013 2.3 0.021 0.023 0.025 0.014 2.4 0.022 0.024 0.026 0.014 2.5 0.023 0.025 0.027 0.015 2.6 0.025 0.028 0.030 0.016 2.7 0.025 0.029 0.031 0.017 2.8 0.026 0.030 0.032 0.018 HSS 2.9 0.027 0.031 0.033 0.018 DRILLS 3.0 0.028 0.032 0.034 0.019 *if the machine tool or the equipment wouldn’t allow to reach the requested rpm, please use the max. available rpm recalculating the Vf value LFTA (Vf=n available x fn) SUTA HSS-HSS/CO Material Group N1 N2 N3 N4 N5 ISO 513 Hardness/Rm Vc (m/min) 125÷135* 105÷115* 96÷104* 135÷140* D fn fn fn fn (mm) (mm/rev) (mm/rev) (mm/rev) (mm/rev) CARBIDE 1.0 0.012 0.012 0.010 0.012 END-MILLS 1.1 0.013 0.013 0.011 0.013 1.2 0.015 0.014 0.012 0.015 G2 1.3 0.016 0.015 0.013 0.016 MDTA 1.4 0.017 0.017 0.014 0.017 HF VH/UP 1.5 0.018 0.018 0.015 0.018 MEF ALU 1.6 0.020 0.020 0.017 0.020 Ø RUN OUT 1.7 0.021 0.021 0.018 0.021 MEX/MH <0.02mm UH/MH 1.8 0.023 0.022 0.019 0.023 1.9 0.024 0.023 0.020 0.024 2.0 0.025 0.025 0.021 0.025 2.1 0.027 0.027 0.023 0.027 2.2 0.029 0.028 0.024 0.029 2.3 0.030 0.029 0.025 0.030 2.4 0.031 0.031 0.026 0.031 2.5 0.033 0.032 0.027 0.033 HSS 2.6 0.035 0.034 0.029 0.035 END-MILLS 2.7 0.037 0.035 0.031 0.036 2.8 0.038 0.037 0.032 0.038 2.9 0.039 0.038 0.033 0.039 3.0 0.041 0.039 0.034 0.040 *if the machine tool or the equipment wouldn’t allow to reach the requested rpm, please use the max. available rpm recalculating the Vf value (Vf=n available x fn) CARBIDE BURRS 136 Libro 1.indb 136 21/10/2021 12:08:50
