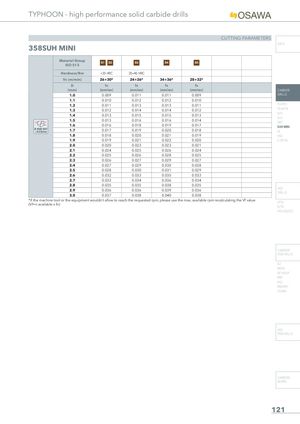

TYPHOON - high performance solid carbide drills

CUTTING PARAMETERS

	Material Group ISO 513	S1 S2	S3	S4	S5
	Hardness/Rm		35÷45 HRC
	Vc (m/min)	26÷30	24÷26	34÷36	28÷32
	D (mm)	fn (mm/rev)	fn (mm/rev)	fn (mm/rev)	fn (mm/rev)
	1.0	0.009	0.011	0.011	0.009
	1.1	0.010	0.012	0.012	0.010
	1.2	0.011	0.013	0.013	0.011
	1.3	0.012	0.014	0.014	0.012
	1.4	0.013	0.015	0.015	0.013
	1.5	0.013	0.016	0.016	0.014
	1.6	0.016	0.018	0.019	0.017
Ø RUN OUT	1.7	0.017	0.019	0.020	0.018
	1.8	0.018	0.020	0.021	0.019
	1.9	0.019	0.021	0.022	0.020
	2.0	0.020	0.023	0.023	0.021
	2.1	0.024	0.025	0.026	0.024
	2.2	0.025	0.026	0.028	0.025
	2.3	0.026	0.027	0.029	0.027
	2.4	0.027	0.029	0.030	0.028
	2.5	0.028	0.030	0.031	0.029
	2.6	0.032	0.033	0.035	0.033
	2.7	0.033	0.034	0.036	0.034
	2.8	0.035	0.035	0.038	0.035
	2.9	0.036	0.036	0.039	0.036
	3.0	0.037	0.038	0.040	0.038
