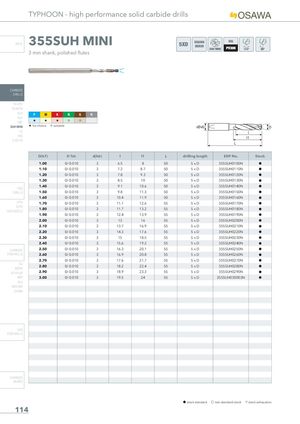

TYPHOON - high performance solid carbide drills

355SUH MINI

5XD OSAWA INFO NORM 135°

3 mm shank, polished flutes

CARBIDE DRILLS

PU-HPU TA-4HTA SUH ALH HRC SUH MINI HL HSD C-SD-TA

P	M	K	N	S	H
H	H	H	I	I

H 1st choice I suitable

D(h7)	D Tol.	d(h6)	l	l1	L	drilling length	EDP No.	Stock
1.00	0/-0.010	3	6.5	8	50	5 x D	355SUH0100N	h
1.10	0/-0.010	3	7.2	8.7	50	5 x D	355SUH0110N	h
1.20	0/-0.010	3	7.8	9.3	50	5 x D	355SUH0120N	h
1.30	0/-0.010	3	8.5	10	50	5 x D	355SUH0130N	h
1.40	0/-0.010	3	9.1	10.6	50	5 x D	355SUH0140N	h
1.50	0/-0.010	3	9.8	11.3	50	5 x D	355SUH0150N	h
1.60	0/-0.010	3	10.4	11.9	50	5 x D	355SUH0160N	h
1.70	0/-0.010	3	11.1	12.6	55	5 x D	355SUH0170N	h
1.80	0/-0.010	3	11.7	13.2	55	5 x D	355SUH0180N	h
1.90	0/-0.010	3	12.4	13.9	55	5 x D	355SUH0190N	h
2.00	0/-0.010	3	13	16	55	5 x D	355SUH0200N	h
2.10	0/-0.010	3	13.7	16.9	55	5 x D	355SUH0210N	h
2.20	0/-0.010	3	14.3	17.6	55	5 x D	355SUH0220N	h
2.30	0/-0.010	3	15	18.5	55	5 x D	355SUH0230N	h
2.40	0/-0.010	3	15.6	19.2	55	5 x D	355SUH0240N	h
2.50	0/-0.010	3	16.3	20.1	55	5 x D	355SUH0250N	h
2.60	0/-0.010	3	16.9	20.8	55	5 x D	355SUH0260N	h
2.70	0/-0.010	3	17.6	21.7	55	5 x D	355SUH0270N	h
2.80	0/-0.010	3	18.2	22.4	55	5 x D	355SUH0280N	h
2.90	0/-0.010	3	18.9	23.3	55	5 x D	355SUH0290N	h
3.00	0/-0.010	3	19.5	24	55	5 x D	355SUH030003N	h

HSS END-MILLS

CARBIDE BURRS

h stock standard f non-standard stock m stock exhaustion
