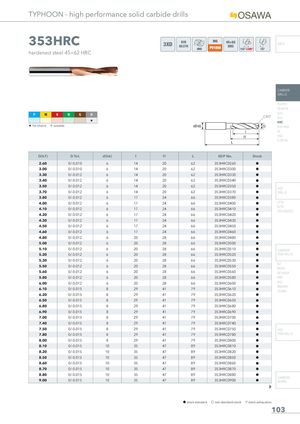

TYPHOON - high performance solid carbide drills
353HRC
3XD DIN 6537K INFO 150°+C45°
hardened steel 45÷62 HRC
CARBIDE DRILLS
PU-HPU
| P M | K N S | H |
| H | ||
| H1st choiceI | suitable |
H H 1st choice I suitable
C45°
TA-4HTA SUH ALH HRC SUH MINI HL HSD C-SD-TA
| D(h7) 2.60 | D Tol. 0/-0.010 | d(h6) 6 | l 14 | l1 20 | L 62 | EDP No. 353HRC0260 | Stock h | |
| 3.00 | 0/-0.010 | 6 | 14 | 20 | 62 | 353HRC0300 | h | |
| 3.30 | 0/-0.012 | 6 | 14 | 20 | 62 | 353HRC0330 | h | |
| 3.40 | 0/-0.012 | 6 | 14 | 20 | 62 | 353HRC0340 | h | |
| 3.50 | 0/-0.012 | 6 | 14 | 20 | 62 | 353HRC0350 | h | HSS |
| 3.70 | 0/-0.012 | 6 | 14 | 20 | 62 | 353HRC0370 | h | DRILLS |
| 3.80 | 0/-0.012 | 6 | 17 | 24 | 66 | 353HRC0380 | h | |
| 4.00 | 0/-0.012 | 6 | 17 | 24 | 66 | 353HRC0400 | h | LFTA |
| 4.10 | 0/-0.012 | 6 | 17 | 24 | 66 | 353HRC0410 | h | SUTA HSS-HSS/CO |
| 4.20 | 0/-0.012 | 6 | 17 | 24 | 66 | 353HRC0420 | h | |
| 4.30 | 0/-0.012 | 6 | 17 | 24 | 66 | 353HRC0430 | h | |
| 4.50 | 0/-0.012 | 6 | 17 | 24 | 66 | 353HRC0450 | h | |
| 4.60 | 0/-0.012 | 6 | 17 | 24 | 66 | 353HRC0460 | h | |
| 4.80 | 0/-0.012 | 6 | 20 | 28 | 66 | 353HRC0480 | h | |
| 5.00 | 0/-0.012 | 6 | 20 | 28 | 66 | 353HRC0500 | h | |
| 5.10 | 0/-0.012 | 6 | 20 | 28 | 66 | 353HRC0510 | h | CARBIDE |
| 5.20 | 0/-0.012 | 6 | 20 | 28 | 66 | 353HRC0520 | h | END-MILLS |
| 5.30 | 0/-0.012 | 6 | 20 | 28 | 66 | 353HRC0530 | h | |
| 5.50 | 0/-0.012 | 6 | 20 | 28 | 66 | 353HRC0550 | h | G2 MDTA |
| 5.60 | 0/-0.012 | 6 | 20 | 28 | 66 | 353HRC0560 | h | HF VH/UP |
| 5.80 | 0/-0.012 | 6 | 20 | 28 | 66 | 353HRC0580 | h | MEF |
| 6.00 | 0/-0.012 | 6 | 20 | 28 | 66 | 353HRC0600 | h | ALU |
| 6.10 | 0/-0.015 | 8 | 29 | 41 | 79 | 353HRC0610 | h | MEX/MH UH/MH |
| 6.20 | 0/-0.015 | 8 | 29 | 41 | 79 | 353HRC0620 | h | |
| 6.50 | 0/-0.015 | 8 | 29 | 41 | 79 | 353HRC0650 | h | |
| 6.80 | 0/-0.015 | 8 | 29 | 41 | 79 | 353HRC0680 | h | |
| 6.90 | 0/-0.015 | 8 | 29 | 41 | 79 | 353HRC0690 | h | |
| 7.00 | 0/-0.015 | 8 | 29 | 41 | 79 | 353HRC0700 | h | |
| 7.40 | 0/-0.015 | 8 | 29 | 41 | 79 | 353HRC0740 | h | |
| 7.50 | 0/-0.015 | 8 | 29 | 41 | 79 | 353HRC0750 | h | HSS |
| 7.80 | 0/-0.015 | 8 | 29 | 41 | 79 | 353HRC0780 | h | END-MILLS |
| 8.00 | 0/-0.015 | 8 | 29 | 41 | 79 | 353HRC0800 | h | |
| 8.10 | 0/-0.015 | 10 | 35 | 47 | 89 | 353HRC0810 | h | |
| 8.20 | 0/-0.015 | 10 | 35 | 47 | 89 | 353HRC0820 | h | |
| 8.50 | 0/-0.015 | 10 | 35 | 47 | 89 | 353HRC0850 | h | |
| 8.60 | 0/-0.015 | 10 | 35 | 47 | 89 | 353HRC0860 | h | |
| 8.70 | 0/-0.015 | 10 | 35 | 47 | 89 | 353HRC0870 | h | |
| 8.80 | 0/-0.015 | 10 | 35 | 47 | 89 | 353HRC0880 | h | |
| 9.00 | 0/-0.015 | 10 | 35 | 47 | 89 | 353HRC0900 | h | CARBIDE BURRS |
