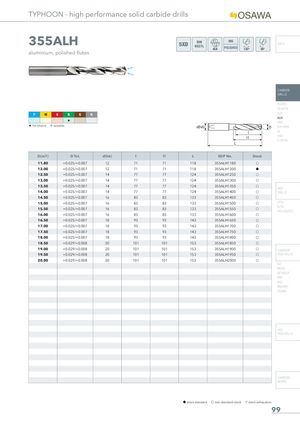

Общий каталог Osawa 2021 - страница 100
Навигация
Общий каталог Osawa 2018
TYPHOON - high performance solid carbide drills
355ALH
5XD
aluminium, polished flutes
DIN 6537L INFO POLISHED
CARBIDE DRILLS
PU-HPU
| P M K N H | S H |
| H1st choiceIsuitable |
TA-4HTA SUH ALH HRC H 1st choice I suitable SUH MINI HL HSD C-SD-TA
| D(m7) | D Tol. | d(h6) | l | l1 | L | EDP No. | Stock |
| 11.80 | +0.025/+0.007 | 12 | 71 | 71 | 118 | 355ALH1180 | f |
| 12.00 | +0.025/+0.007 | 12 | 71 | 71 | 118 | 355ALH1200 | h |
| 12.50 | +0.025/+0.007 | 14 | 77 | 77 | 124 | 355ALH1250 | f |
| 13.00 | +0.025/+0.007 | 14 | 77 | 77 | 124 | 355ALH1300 | f |
| 13.50 | +0.025/+0.007 | 14 | 77 | 77 | 124 | 355ALH1350 | f |
| 14.00 | +0.025/+0.007 | 14 | 77 | 77 | 124 | 355ALH1400 | f |
| 14.50 | +0.025/+0.007 | 16 | 83 | 83 | 133 | 355ALH1450 | f |
| 15.00 | +0.025/+0.007 | 16 | 83 | 83 | 133 | 355ALH1500 | f |
| 15.50 | +0.025/+0.007 | 16 | 83 | 83 | 133 | 355ALH1550 | f |
| 16.00 | +0.025/+0.007 | 16 | 83 | 83 | 133 | 355ALH1600 | f |
| 16.50 | +0.025/+0.007 | 18 | 93 | 93 | 143 | 355ALH1650 | f |
| 17.00 | +0.025/+0.007 | 18 | 93 | 93 | 143 | 355ALH1700 | f |
| 17.50 | +0.025/+0.007 | 18 | 93 | 93 | 143 | 355ALH1750 | f |
| 18.00 | +0.025/+0.007 | 18 | 93 | 93 | 143 | 355ALH1800 | f |
| 18.50 | +0.029/+0.008 | 20 | 101 | 101 | 153 | 355ALH1850 | f |
| 19.00 | +0.029/+0.008 | 20 | 101 | 101 | 153 | 355ALH1900 | f |
| 19.50 | +0.029/+0.008 | 20 | 101 | 101 | 153 | 355ALH1950 | f |
| 20.00 | +0.029/+0.008 | 20 | 101 | 101 | 153 | 355ALH2000 | f |
MEX/MH UH/MH
HSS END-MILLS
CARBIDE BURRS
h stock standard f non-standard stock m stock exhaustion
