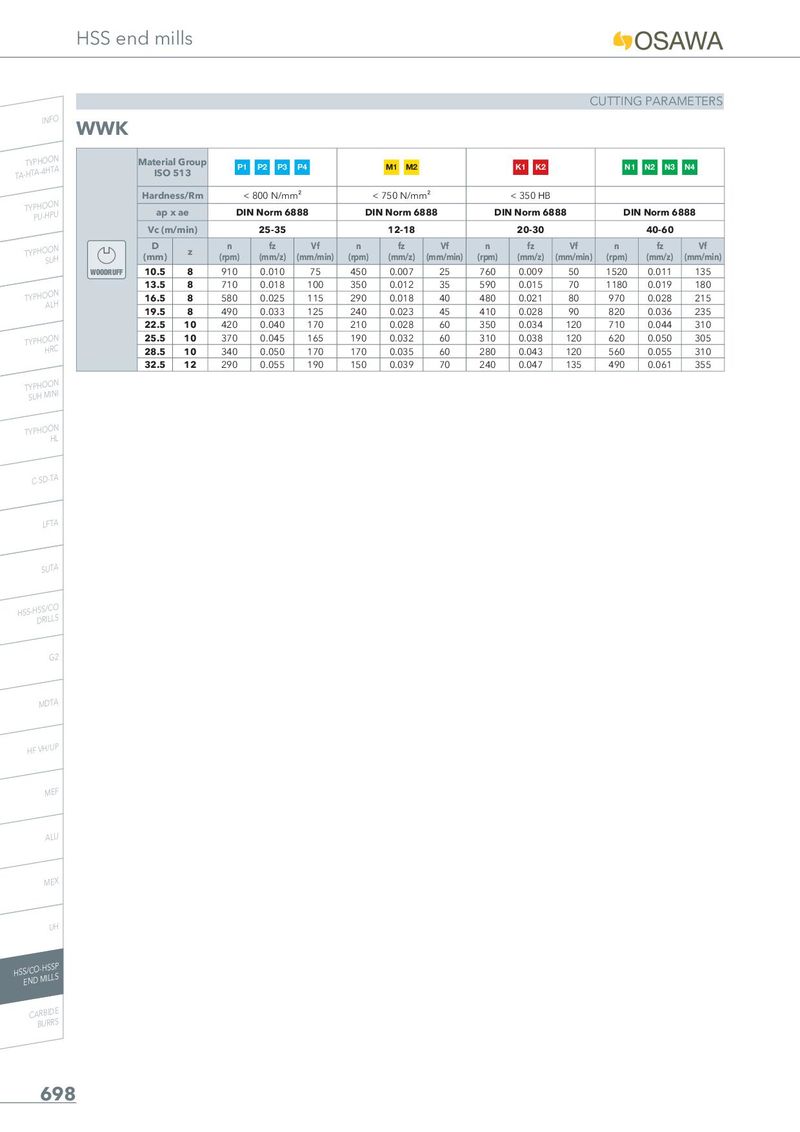

CUTTING PARAMETERS

INFO WWK

M	aterial ISO	Group 513	P1	P2 P3	P4		M1 M2			K1 K2		N1	N2 N3	N4
H	ardne	ss/Rm		800 N/m	m²		750 N/m	m²		< 350 HB
	ap x	ae	DI	N Norm 6	888	DI	N Norm 68	88	DI	N Norm 6	888	DI	N Norm 6	888
	Vc (m	/min)		25-35			12-18			20-30			40-60
(	D mm)	z	n (rpm)	fz (mm/z)	Vf (mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)
WOODRUFF	10.5	8	910	0.010	75	450	0.007	25	760	0.009	50	1520	0.011	135
	13.5	8	710	0.018	100	350	0.012	35	590	0.015	70	1180	0.019	180
	16.5	8	580	0.025	115	290	0.018	40	480	0.021	80	970	0.028	215
	19.5	8	490	0.033	125	240	0.023	45	410	0.028	90	820	0.036	235
	22.5	10	420	0.040	170	210	0.028	60	350	0.034	120	710	0.044	310
	25.5	10	370	0.045	165	190	0.032	60	310	0.038	120	620	0.050	305
	28.5	10	340	0.050	170	170	0.035	60	280	0.043	120	560	0.055	310
	32.5	12	290	0.055	190	150	0.039	70	240	0.047	135	490	0.061	355
