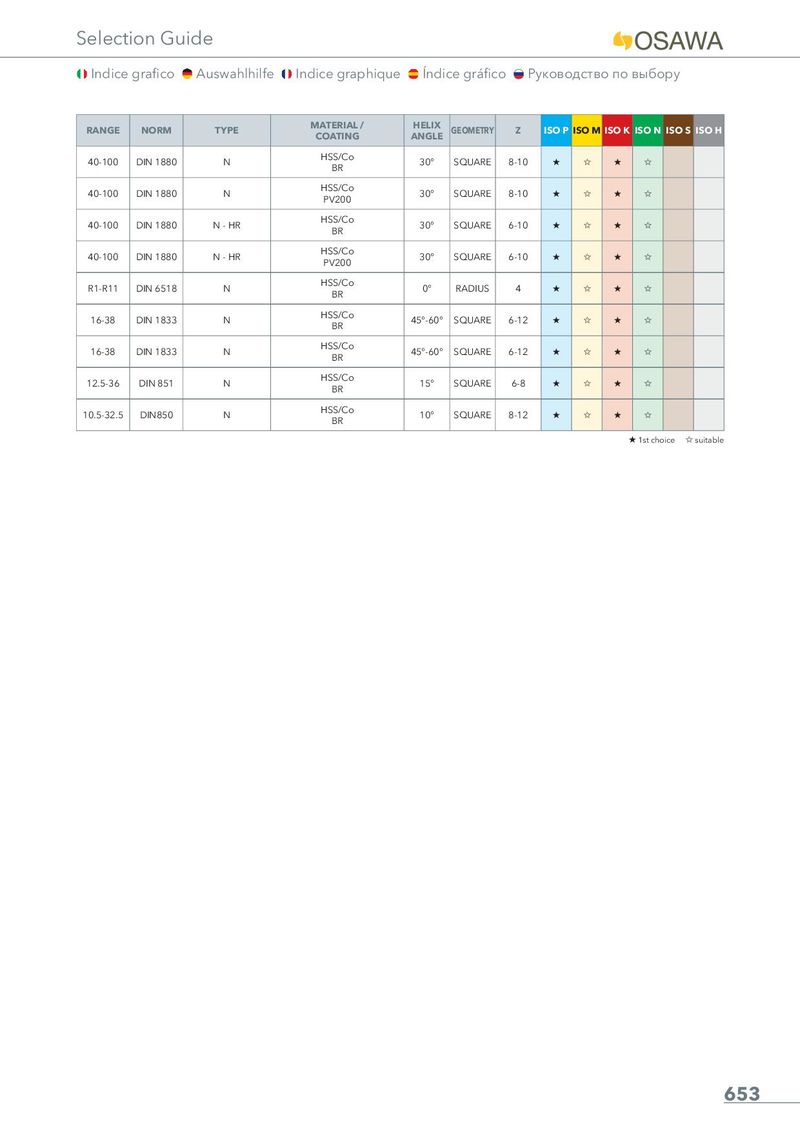

Selection Guide Indice grafico Auswahlhilfe Indice graphique Índice gráfico Руководство по выбору RANGE NORM TYPE MATERIAL / HELIX GEOMETRY Z ISO P ISO M ISO K ISO N ISO S ISO H COATING ANGLE 40-100 DIN 1880 N HSS/Co 30° SQUARE 8-10 + , + , BR 40-100 DIN 1880 N HSS/Co 30° SQUARE 8-10 + , + , PV200 40-100 DIN 1880 N - HR HSS/Co 30° SQUARE 6-10 + , + , BR 40-100 DIN 1880 N - HR HSS/Co 30° SQUARE 6-10 + , + , PV200 R1-R11 DIN 6518 N HSS/Co 0° RADIUS 4 + , + , BR 16-38 DIN 1833 N HSS/Co 45°-60° SQUARE 6-12 + , + , BR 16-38 DIN 1833 N HSS/Co 45°-60° SQUARE 6-12 + , + , BR 12.5-36 DIN 851 N HSS/Co 15° SQUARE 6-8 + , + , BR 10.5-32.5 DIN850 N HSS/Co 10° SQUARE 8-12 + , + , BR + 1st choice , suitable 653
