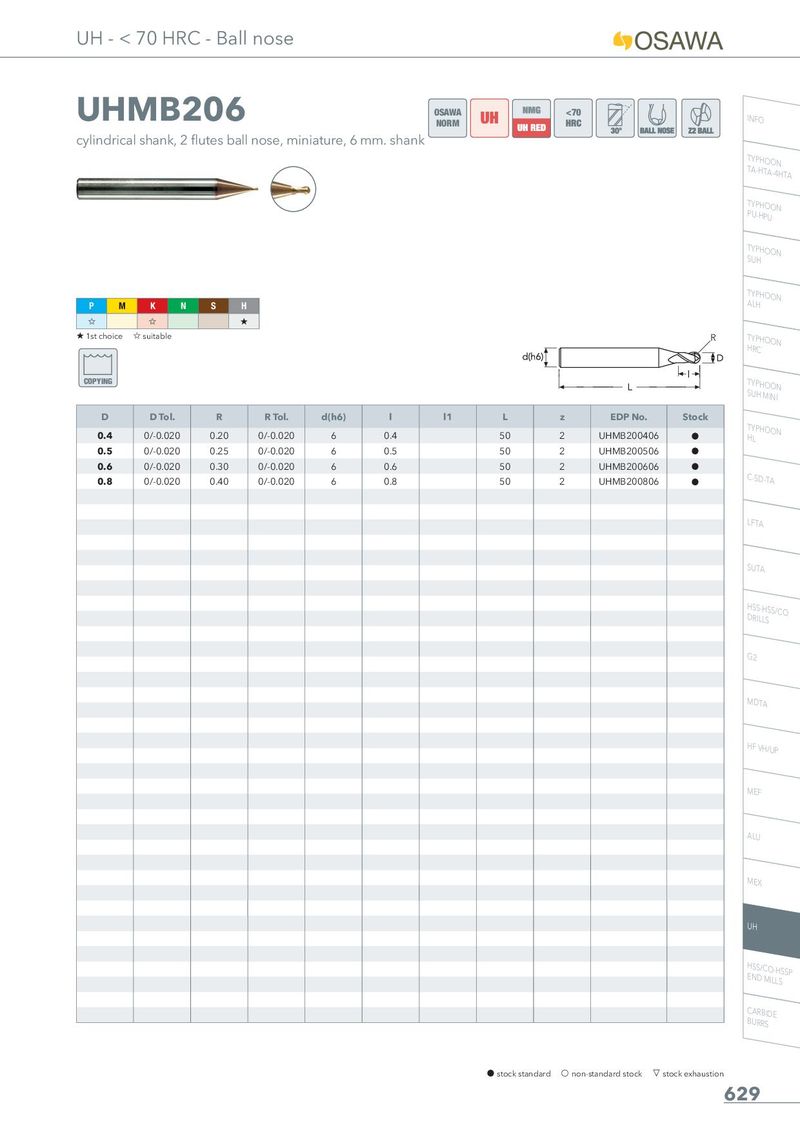

UHMB206
OSAWA <70 NORM
cylindrical shank, 2 flutes ball nose, miniature, 6 mm. shank
P M K N S H
+ 1st choice , suitable R
COPYING
| D | D Tol. | R | R Tol. | d(h6) | l | l1 | L | z | EDP No. | Stock | |
| 0.4 | 0/-0.020 | 0.20 | 0/-0.020 | 6 | 0.4 | 50 | 2 | UHMB200406 | h | ||
| 0.5 | 0/-0.020 | 0.25 | 0/-0.020 | 6 | 0.5 | 50 | 2 | UHMB200506 | h | ||
| 0.6 | 0/-0.020 | 0.30 | 0/-0.020 | 6 | 0.6 | 50 | 2 | UHMB200606 | h | ||
| 0.8 | 0/-0.020 | 0.40 | 0/-0.020 | 6 | 0.8 | 50 | 2 | UHMB200806 | h |
