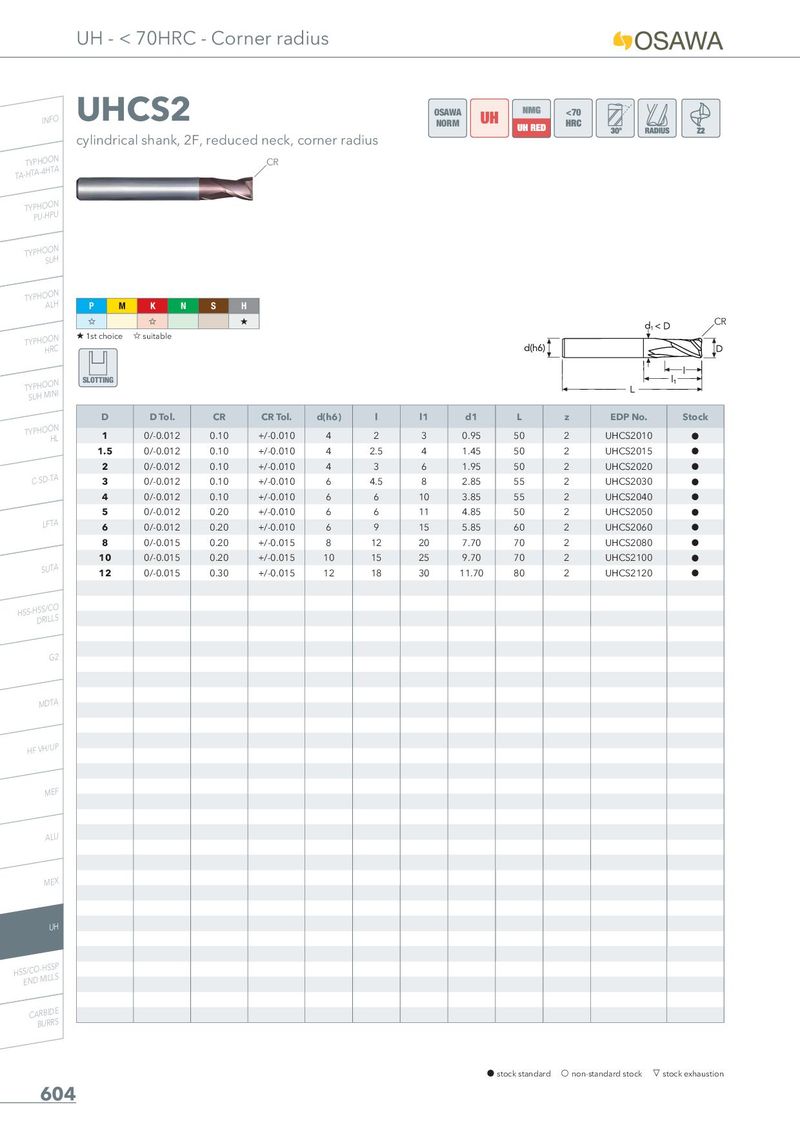

UHCS2
OSAWA <70 NORM
cylindrical shank, 2F, reduced neck, corner radius
CR
| P M | K N | S H | ||||||||||
| � �1st choice SLOTTING | � �suitable | � | CR | |||||||||
| D | D Tol. | CR | CR Tol. | d(h6) | l | l1 | d1 | L | z | EDP No. | Stock | |
| 1 | 0/-0.012 | 0.10 | +/-0.010 | 4 | 2 | 3 | 0.95 | 50 | 2 | UHCS2010 | h | |
| 1.5 | 0/-0.012 | 0.10 | +/-0.010 | 4 | 2.5 | 4 | 1.45 | 50 | 2 | UHCS2015 | h | |
| 2 | 0/-0.012 | 0.10 | +/-0.010 | 4 | 3 | 6 | 1.95 | 50 | 2 | UHCS2020 | h | |
| 3 | 0/-0.012 | 0.10 | +/-0.010 | 6 | 4.5 | 8 | 2.85 | 55 | 2 | UHCS2030 | h | |
| 4 | 0/-0.012 | 0.10 | +/-0.010 | 6 | 6 | 10 | 3.85 | 55 | 2 | UHCS2040 | h | |
| 5 | 0/-0.012 | 0.20 | +/-0.010 | 6 | 6 | 11 | 4.85 | 50 | 2 | UHCS2050 | h | |
| 6 | 0/-0.012 | 0.20 | +/-0.010 | 6 | 9 | 15 | 5.85 | 60 | 2 | UHCS2060 | h | |
| 8 | 0/-0.015 | 0.20 | +/-0.015 | 8 | 12 | 20 | 7.70 | 70 | 2 | UHCS2080 | h | |
| 10 | 0/-0.015 | 0.20 | +/-0.015 | 10 | 15 | 25 | 9.70 | 70 | 2 | UHCS2100 | h | |
| 12 | 0/-0.015 | 0.30 | +/-0.015 | 12 | 18 | 30 | 11.70 | 80 | 2 | UHCS2120 | h |
