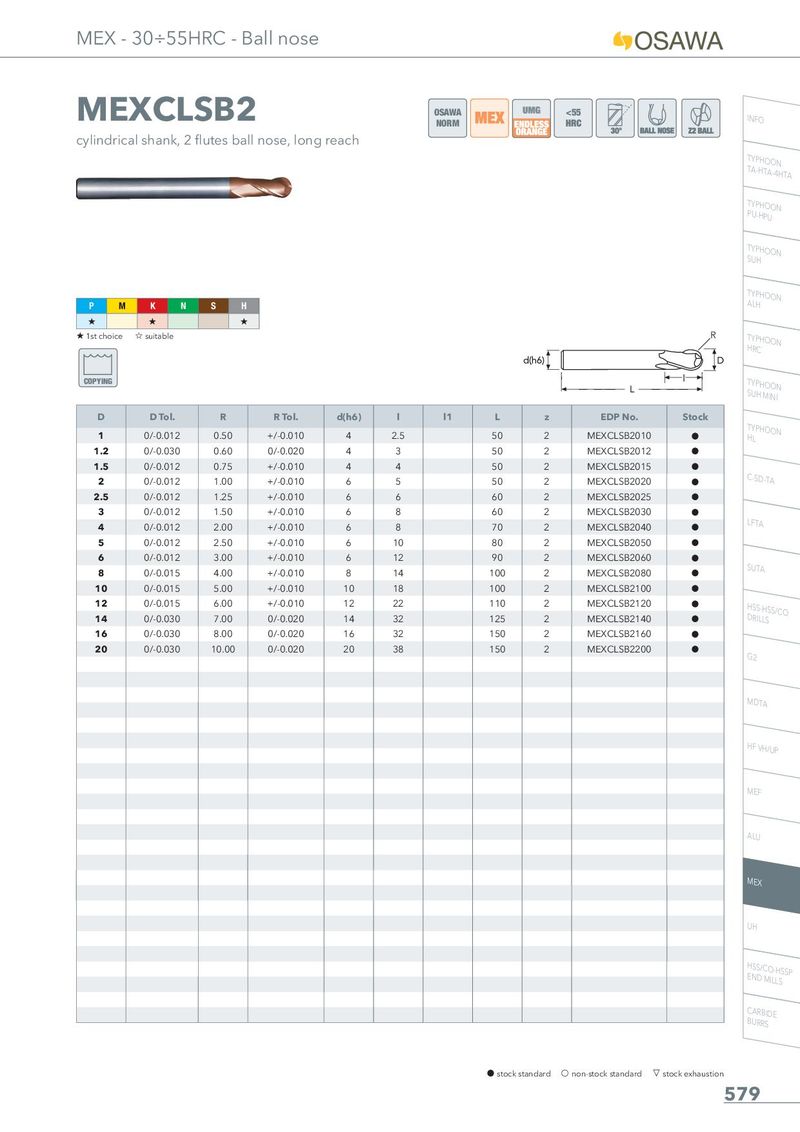

MEX - 30÷55HRC - Ball nose MEXCLSB2 OSAWA <55 INFO NORM cylindrical shank, 2 flutes ball nose, long reach TTYAP-HHTOAO-4NHTA TPYUP-HHPOUON TSUYPHHOON P M K N S H TAYLPHHOON + + + + 1st choice , suitable R THYRPCHOON COPYING TSUYPHHMOIONIN D D Tol. R R Tol. d(h6) l l1 L z EDP No. Stock 1 0/-0.012 0.50 +/-0.010 4 2.5 50 2 MEXCLSB2010 h THYLPHOON 1.2 0/-0.030 0.60 0/-0.020 4 3 50 2 MEXCLSB2012 h 1.5 0/-0.012 0.75 +/-0.010 4 4 50 2 MEXCLSB2015 h 2 0/-0.012 1.00 +/-0.010 6 5 50 2 MEXCLSB2020 h C-SD-TA 2.5 0/-0.012 1.25 +/-0.010 6 6 60 2 MEXCLSB2025 h 3 0/-0.012 1.50 +/-0.010 6 8 60 2 MEXCLSB2030 h 4 0/-0.012 2.00 +/-0.010 6 8 70 2 MEXCLSB2040 h LFTA 5 0/-0.012 2.50 +/-0.010 6 10 80 2 MEXCLSB2050 h 6 0/-0.012 3.00 +/-0.010 6 12 90 2 MEXCLSB2060 h 8 0/-0.015 4.00 +/-0.010 8 14 100 2 MEXCLSB2080 h SUTA 10 0/-0.015 5.00 +/-0.010 10 18 100 2 MEXCLSB2100 h 12 0/-0.015 6.00 +/-0.010 12 22 110 2 MEXCLSB2120 h HDSRSIL-LHSSS/CO 14 0/-0.030 7.00 0/-0.020 14 32 125 2 MEXCLSB2140 h 16 0/-0.030 8.00 0/-0.020 16 32 150 2 MEXCLSB2160 h 20 0/-0.030 10.00 0/-0.020 20 38 150 2 MEXCLSB2200 h G2 MDTA HF VH/UP MEF ALU MEX UH HENSSD/CMOIL-LHSSSP CBUARRRBSIDE h stock standard f non-stock standard m stock exhaustion 579
