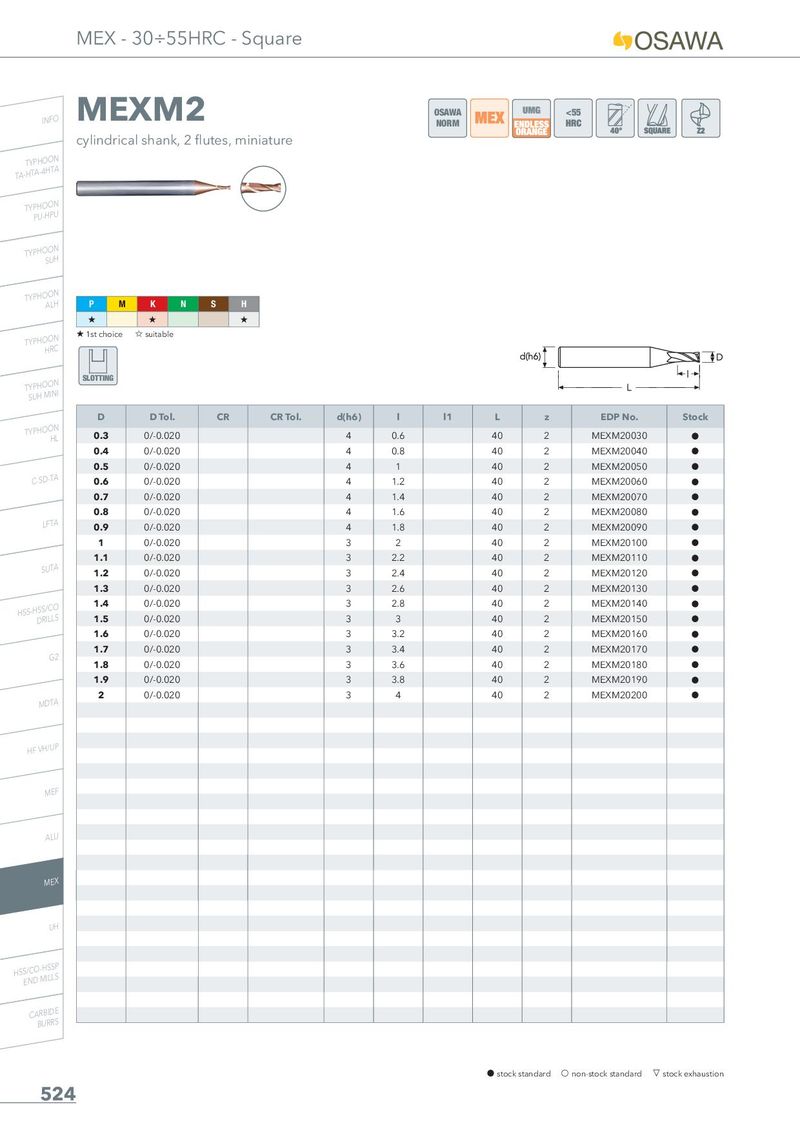

MEXM2

OSAWA <55 NORM

cylindrical shank, 2 flutes, miniature

P M	K N	S	H
�	�		�
�1st choice	�suitable
SLOTTING

ALH

TYPHOON HRC

TYPHOON SUH MINI

D	D Tol.	CR	CR Tol.	d(h6)	l	l1	L	z	EDP No.	Stock
0.3	0/-0.020			4	0.6		40	2	MEXM20030	h
0.4	0/-0.020			4	0.8		40	2	MEXM20040	h
0.5	0/-0.020			4	1		40	2	MEXM20050	h
0.6	0/-0.020			4	1.2		40	2	MEXM20060	h
0.7	0/-0.020			4	1.4		40	2	MEXM20070	h
0.8	0/-0.020			4	1.6		40	2	MEXM20080	h
0.9	0/-0.020			4	1.8		40	2	MEXM20090	h
1	0/-0.020			3	2		40	2	MEXM20100	h
1.1	0/-0.020			3	2.2		40	2	MEXM20110	h
1.2	0/-0.020			3	2.4		40	2	MEXM20120	h
1.3	0/-0.020			3	2.6		40	2	MEXM20130	h
1.4	0/-0.020			3	2.8		40	2	MEXM20140	h
1.5	0/-0.020			3	3		40	2	MEXM20150	h
1.6	0/-0.020			3	3.2		40	2	MEXM20160	h
1.7	0/-0.020			3	3.4		40	2	MEXM20170	h
1.8	0/-0.020			3	3.6		40	2	MEXM20180	h
1.9	0/-0.020			3	3.8		40	2	MEXM20190	h
2	0/-0.020			3	4		40	2	MEXM20200	h
