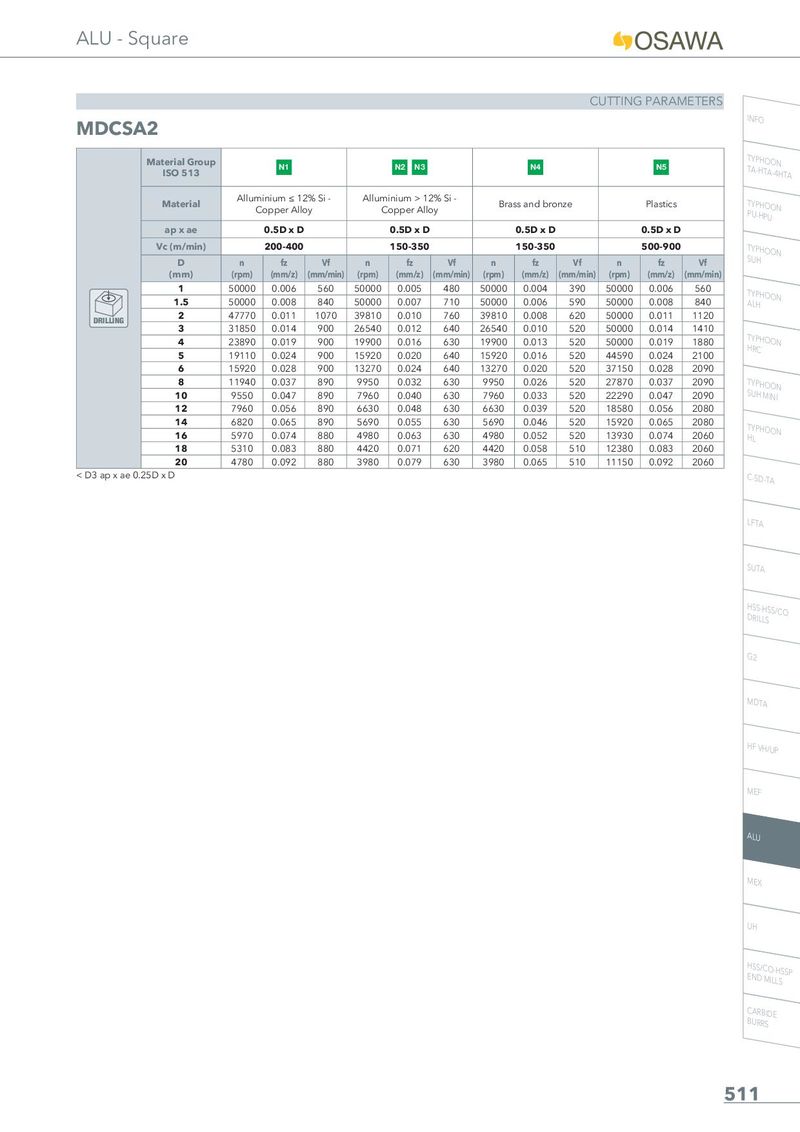

ALU - Square CUTTING PARAMETERS MDCSA2 INFO Material Group N1 N2 N3 N4 N5 TTYAP-HHTOAO-4NHTA ISO 513 Material Alluminium ≤ 12% Si - Alluminium > 12% Si - Brass and bronze Plastics TPYUP-HHPOUON Copper Alloy Copper Alloy ap x ae 0.5D x D 0.5D x D 0.5D x D 0.5D x D Vc (m/min) 200-400 150-350 150-350 500-900 TSUYPHHOON D n fz Vf n fz Vf n fz Vf n fz Vf (mm) (rpm) (mm/z) (mm/min) (rpm) (mm/z) (mm/min) (rpm) (mm/z) (mm/min) (rpm) (mm/z) (mm/min) 1 50000 0.006 560 50000 0.005 480 50000 0.004 390 50000 0.006 560 TAYLPHHOON 1.5 50000 0.008 840 50000 0.007 710 50000 0.006 590 50000 0.008 840 DRILLING 2 47770 0.011 1070 39810 0.010 760 39810 0.008 620 50000 0.011 1120 3 31850 0.014 900 26540 0.012 640 26540 0.010 520 50000 0.014 1410 4 23890 0.019 900 19900 0.016 630 19900 0.013 520 50000 0.019 1880 THYRPCHOON 5 19110 0.024 900 15920 0.020 640 15920 0.016 520 44590 0.024 2100 6 15920 0.028 900 13270 0.024 640 13270 0.020 520 37150 0.028 2090 8 11940 0.037 890 9950 0.032 630 9950 0.026 520 27870 0.037 2090 TSUYPHHMOIONIN 10 9550 0.047 890 7960 0.040 630 7960 0.033 520 22290 0.047 2090 12 7960 0.056 890 6630 0.048 630 6630 0.039 520 18580 0.056 2080 14 6820 0.065 890 5690 0.055 630 5690 0.046 520 15920 0.065 2080 THYLPHOON 16 5970 0.074 880 4980 0.063 630 4980 0.052 520 13930 0.074 2060 18 5310 0.083 880 4420 0.071 620 4420 0.058 510 12380 0.083 2060 20 4780 0.092 880 3980 0.079 630 3980 0.065 510 11150 0.092 2060 < D3 ap x ae 0.25D x D C-SD-TA LFTA SUTA HDSRSIL-LHSSS/CO G2 MDTA HF VH/UP MEF ALU MEX UH HENSSD/CMOIL-LHSSSP CBUARRRBSIDE 511
