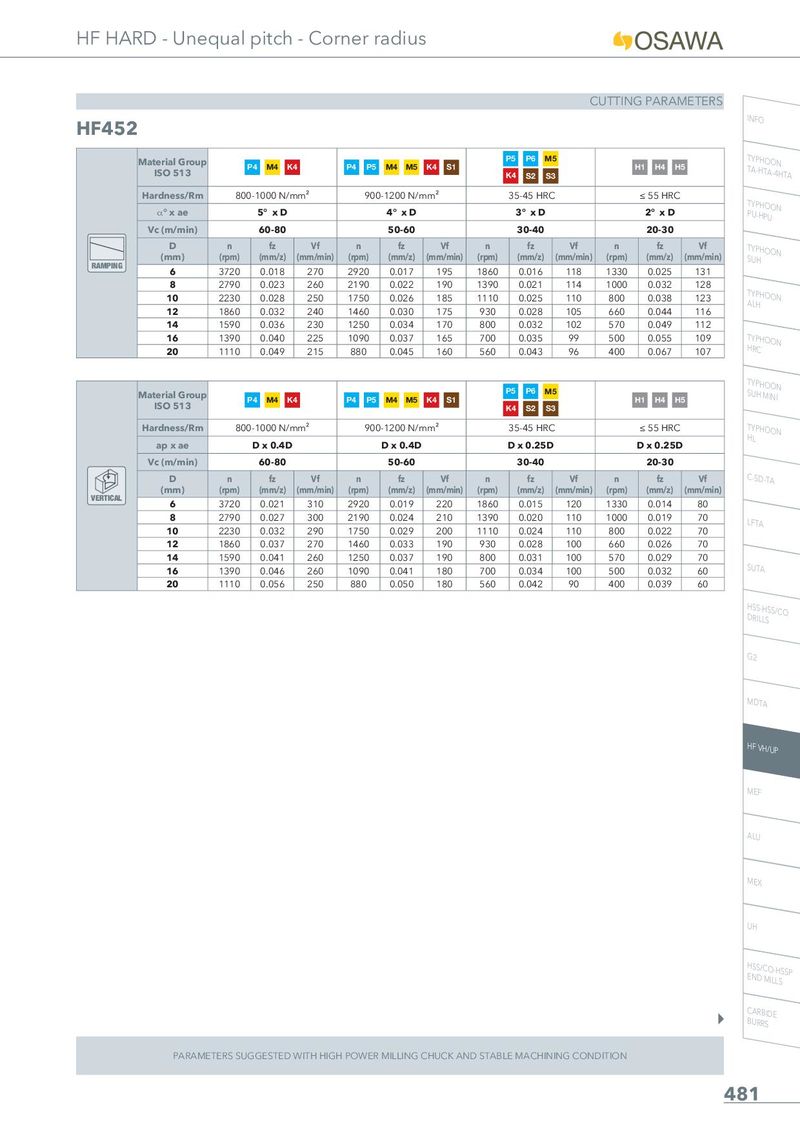

Общий каталог Osawa 2018 - страница 483

Общий каталог Osawa 2021

Общий каталог Osawa 2021

CUTTING PARAMETERS

HF452 INFO

	Material Group ISO 513		P4 M4 K	4	P4 P5	M4 M5	K4 S1		P5 P6 M5 K4 S2 S3			H1 H4 H5
	Hardness/Rm	800	-1000 N/m	m²	900	-1200 N/m	m²		35-45 HRC			≤ 55 HRC
	�° x ae		5° x D			4° x D			3° x D			2° x D
	Vc (m/min)		60-80			50-60			30-40			20-30
	D (mm)	n (rpm)	fz (mm/z)	Vf (mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)
RAMPING	6	3720	0.018	270	2920	0.017	195	1860	0.016	118	1330	0.025	131
	8	2790	0.023	260	2190	0.022	190	1390	0.021	114	1000	0.032	128
	10	2230	0.028	250	1750	0.026	185	1110	0.025	110	800	0.038	123
	12	1860	0.032	240	1460	0.030	175	930	0.028	105	660	0.044	116
	14	1590	0.036	230	1250	0.034	170	800	0.032	102	570	0.049	112
	16	1390	0.040	225	1090	0.037	165	700	0.035	99	500	0.055	109
	20	1110	0.049	215	880	0.045	160	560	0.043	96	400	0.067	107
	Material Group ISO 513		P4 M4 K	4	P4 P5	M4 M5	K4 S1		P5 P6 M5 K4 S2 S3			H1 H4 H5
	Hardness/Rm	800	-1000 N/m	m²	900	-1200 N/m	m²		35-45 HRC			≤ 55 HRC
	ap x ae		D x 0.4D			D x 0.4D			D x 0.25D			D x 0.25D
	Vc (m/min)		60-80			50-60			30-40			20-30
	D (mm)	n (rpm)	fz (mm/z)	Vf (mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)
VERTICAL	6	3720	0.021	310	2920	0.019	220	1860	0.015	120	1330	0.014	80
	8	2790	0.027	300	2190	0.024	210	1390	0.020	110	1000	0.019	70
	10	2230	0.032	290	1750	0.029	200	1110	0.024	110	800	0.022	70
	12	1860	0.037	270	1460	0.033	190	930	0.028	100	660	0.026	70
	14	1590	0.041	260	1250	0.037	190	800	0.031	100	570	0.029	70
	16	1390	0.046	260	1090	0.041	180	700	0.034	100	500	0.032	60
	20	1110	0.056	250	880	0.050	180	560	0.042	90	400	0.039	60
