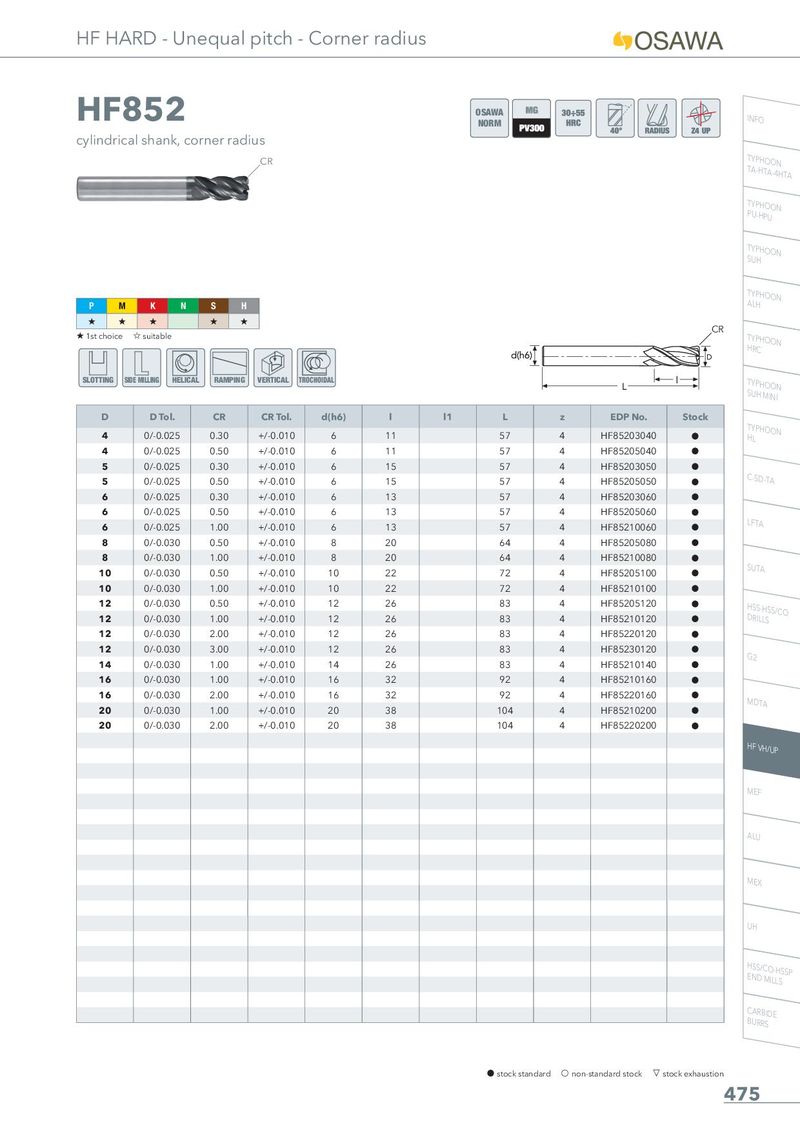

HF852

cylindrical shank, corner radius

CR

OSAWA NORM

INFO

TYPHOON TA-HTA-4HTA

TYPHOON PU-HPU

TYPHOON SUH

TYPHOON

P M	K N	S	H
� �	�	�	�
�1st choice	�suitable
SLOTTING S	IDE MILLING HELICAL	RAMPIN	G VERTICAL	TROCHOIDAL
D	D Tol.	CR	CR Tol.	d(h6)	l	l1	L	z	EDP No.	Stock
4	0/-0.025	0.30	+/-0.010	6	11		57	4	HF85203040	h
4	0/-0.025	0.50	+/-0.010	6	11		57	4	HF85205040	h
5	0/-0.025	0.30	+/-0.010	6	15		57	4	HF85203050	h
5	0/-0.025	0.50	+/-0.010	6	15		57	4	HF85205050	h
6	0/-0.025	0.30	+/-0.010	6	13		57	4	HF85203060	h
6	0/-0.025	0.50	+/-0.010	6	13		57	4	HF85205060	h
6	0/-0.025	1.00	+/-0.010	6	13		57	4	HF85210060	h
8	0/-0.030	0.50	+/-0.010	8	20		64	4	HF85205080	h
8	0/-0.030	1.00	+/-0.010	8	20		64	4	HF85210080	h
10	0/-0.030	0.50	+/-0.010	10	22		72	4	HF85205100	h
10	0/-0.030	1.00	+/-0.010	10	22		72	4	HF85210100	h
12	0/-0.030	0.50	+/-0.010	12	26		83	4	HF85205120	h
12	0/-0.030	1.00	+/-0.010	12	26		83	4	HF85210120	h
12	0/-0.030	2.00	+/-0.010	12	26		83	4	HF85220120	h
12	0/-0.030	3.00	+/-0.010	12	26		83	4	HF85230120	h
14	0/-0.030	1.00	+/-0.010	14	26		83	4	HF85210140	h
16	0/-0.030	1.00	+/-0.010	16	32		92	4	HF85210160	h
16	0/-0.030	2.00	+/-0.010	16	32		92	4	HF85220160	h
20	0/-0.030	1.00	+/-0.010	20	38		104	4	HF85210200	h
20	0/-0.030	2.00	+/-0.010	20	38		104	4	HF85220200	h
