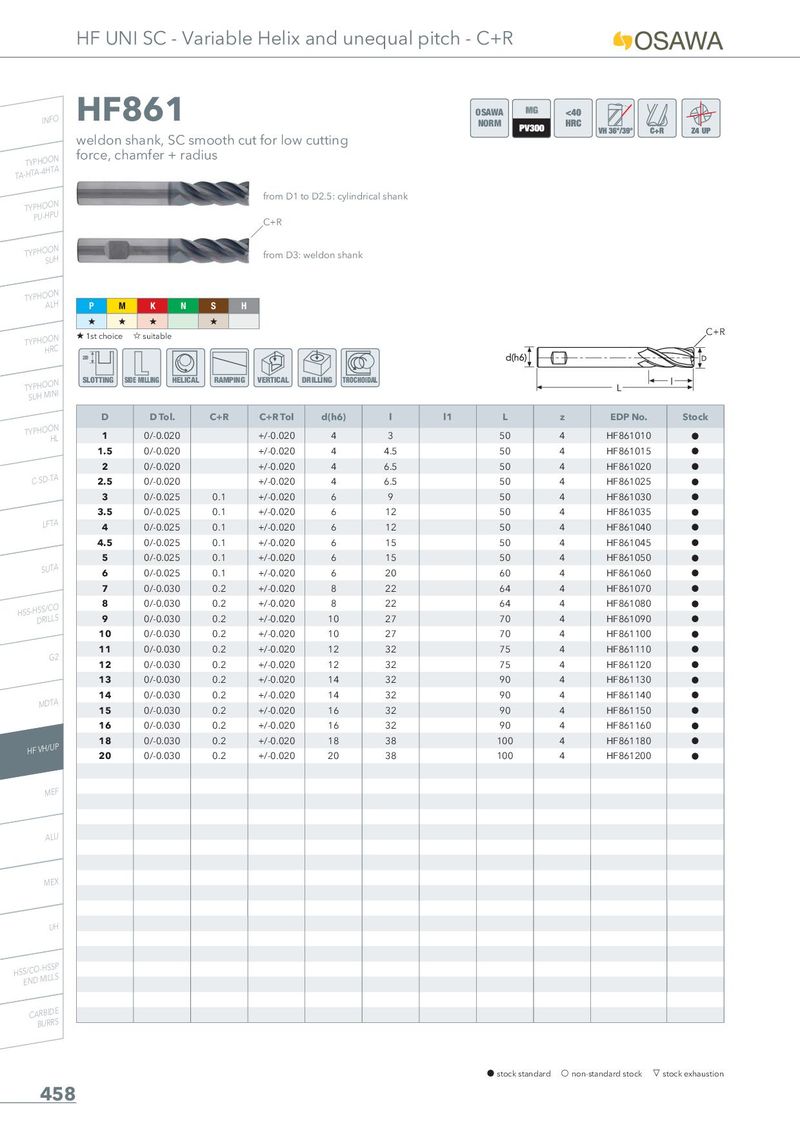

HF UNI SC - Variable Helix and unequal pitch - C+R INFO HF861 OSAWA NORM weldon shank, SC smooth cut for low cutting TA-THYTPAH-4OHOTNA force, chamfer + radius TYPPHUO-HOPNU from D1 to D2.5: cylindrical shank C+R TYPHOSOUNH from D3: weldon shank TYPHOAOLNH P M K N S H + + + + TYPHOHORNC + 1st choice , suitable C+R 2D TSYUPHHOMOINNI SLOTTING SIDE MILLING HELICAL RAMPING VERTICAL DRILLING TROCHOIDAL D D Tol. C+R C+R Tol d(h6) l l1 L z EDP No. Stock TYPHOOHNL 1 0/-0.020 +/-0.020 4 3 50 4 HF861010 h 1.5 0/-0.020 +/-0.020 4 4.5 50 4 HF861015 h 2 0/-0.020 +/-0.020 4 6.5 50 4 HF861020 h C-SD-TA 2.5 0/-0.020 +/-0.020 4 6.5 50 4 HF861025 h 3 0/-0.025 0.1 +/-0.020 6 9 50 4 HF861030 h 3.5 0/-0.025 0.1 +/-0.020 6 12 50 4 HF861035 h LFTA 4 0/-0.025 0.1 +/-0.020 6 12 50 4 HF861040 h 4.5 0/-0.025 0.1 +/-0.020 6 15 50 4 HF861045 h 5 0/-0.025 0.1 +/-0.020 6 15 50 4 HF861050 h SUTA 6 0/-0.025 0.1 +/-0.020 6 20 60 4 HF861060 h 7 0/-0.030 0.2 +/-0.020 8 22 64 4 HF861070 h HSS-HDSSR/ILCLOS 8 0/-0.030 0.2 +/-0.020 8 22 64 4 HF861080 h 9 0/-0.030 0.2 +/-0.020 10 27 70 4 HF861090 h 10 0/-0.030 0.2 +/-0.020 10 27 70 4 HF861100 h G2 11 0/-0.030 0.2 +/-0.020 12 32 75 4 HF861110 h 12 0/-0.030 0.2 +/-0.020 12 32 75 4 HF861120 h 13 0/-0.030 0.2 +/-0.020 14 32 90 4 HF861130 h MDTA 14 0/-0.030 0.2 +/-0.020 14 32 90 4 HF861140 h 15 0/-0.030 0.2 +/-0.020 16 32 90 4 HF861150 h 16 0/-0.030 0.2 +/-0.020 16 32 90 4 HF861160 h HF VH/UP 18 0/-0.030 0.2 +/-0.020 18 38 100 4 HF861180 h 20 0/-0.030 0.2 +/-0.020 20 38 100 4 HF861200 h MEF ALU MEX UH HSSE/NCDO-MHISLSLPS CARBIDE BURRS h stock standard f non-standard stock m stock exhaustion 458
