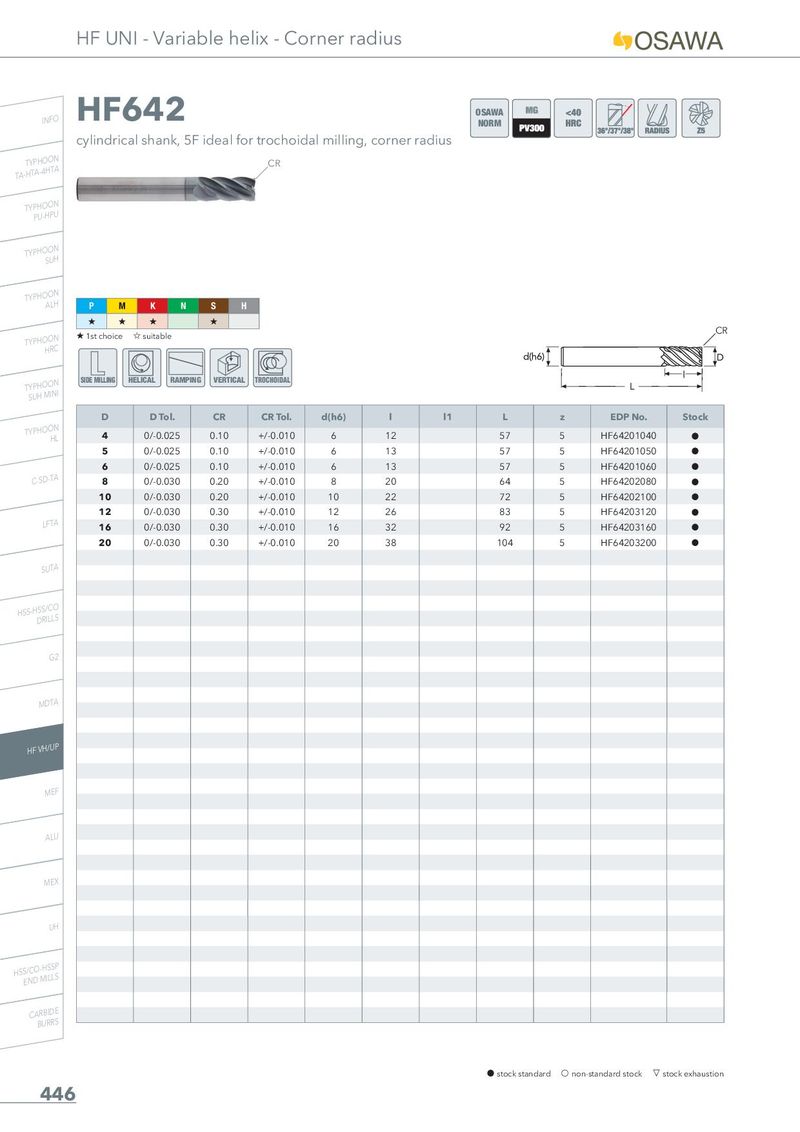

HF642
OSAWA NORM
cylindrical shank, 5F ideal for trochoidal milling, corner radius
CR
| P M | K N | S H | ||||||||
| � � | � | � | ||||||||
| �1st choice | �suitable | |||||||||
| SIDE MILLING | HELICAL RAMPIN | G VERTICAL | TROCHOIDAL | |||||||
| D | D Tol. | CR | CR Tol. | d(h6) | l | l1 | L | z | EDP No. | Stock |
| 4 | 0/-0.025 | 0.10 | +/-0.010 | 6 | 12 | 57 | 5 | HF64201040 | h | |
| 5 | 0/-0.025 | 0.10 | +/-0.010 | 6 | 13 | 57 | 5 | HF64201050 | h | |
| 6 | 0/-0.025 | 0.10 | +/-0.010 | 6 | 13 | 57 | 5 | HF64201060 | h | |
| 8 | 0/-0.030 | 0.20 | +/-0.010 | 8 | 20 | 64 | 5 | HF64202080 | h | |
| 10 | 0/-0.030 | 0.20 | +/-0.010 | 10 | 22 | 72 | 5 | HF64202100 | h | |
| 12 | 0/-0.030 | 0.30 | +/-0.010 | 12 | 26 | 83 | 5 | HF64203120 | h | |
| 16 | 0/-0.030 | 0.30 | +/-0.010 | 16 | 32 | 92 | 5 | HF64203160 | h | |
| 20 | 0/-0.030 | 0.30 | +/-0.010 | 20 | 38 | 104 | 5 | HF64203200 | h |
