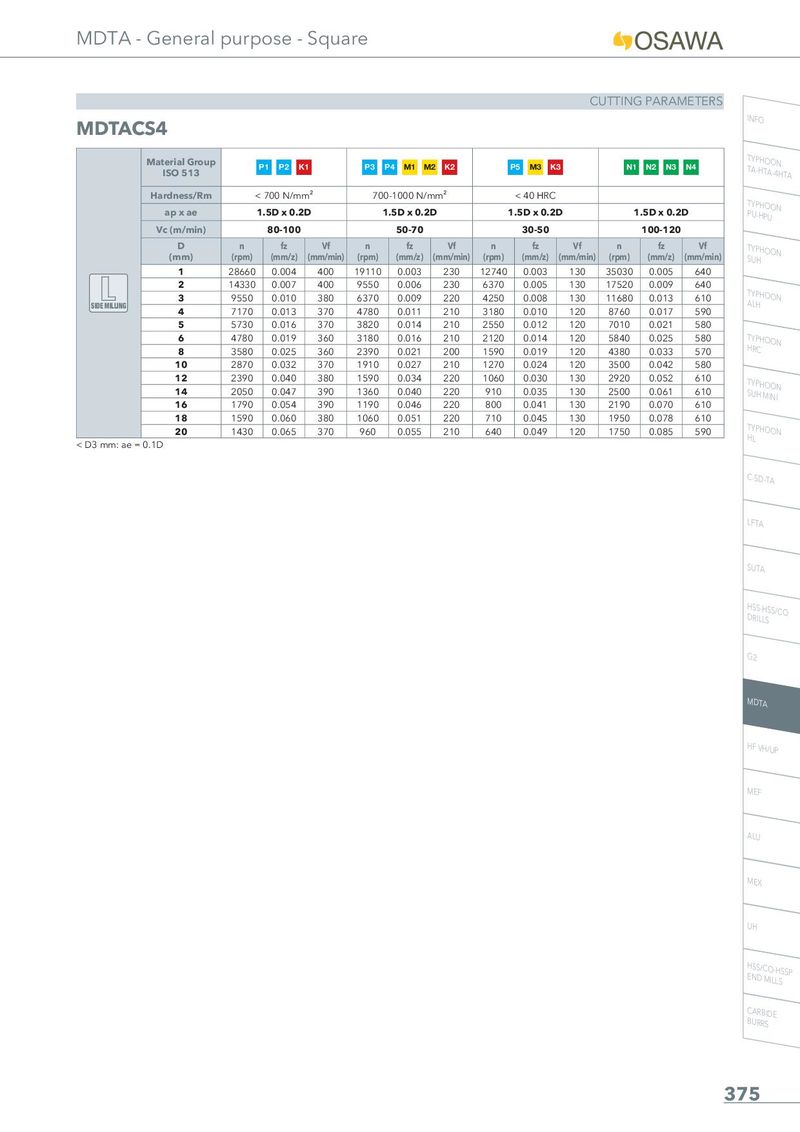

MDTA - General purpose - Square CUTTING PARAMETERS MDTACS4 INFO Material Group P1 P2 K1 P3 P4 M1 M2 K2 P5 M3 K3 N1 N2 N3 N4 TTYAP-HHTOAO-4NHTA ISO 513 Hardness/Rm < 700 N/mm² 700-1000 N/mm² < 40 HRC TPYUP-HHPOUON ap x ae 1.5D x 0.2D 1.5D x 0.2D 1.5D x 0.2D 1.5D x 0.2D Vc (m/min) 80-100 50-70 30-50 100-120 D n fz Vf n fz Vf n fz Vf n fz Vf TSUYPHHOON (mm) (rpm) (mm/z) (mm/min) (rpm) (mm/z) (mm/min) (rpm) (mm/z) (mm/min) (rpm) (mm/z) (mm/min) 1 28660 0.004 400 19110 0.003 230 12740 0.003 130 35030 0.005 640 2 14330 0.007 400 9550 0.006 230 6370 0.005 130 17520 0.009 640 TAYLPHHOON SIDE MILLING 3 9550 0.010 380 6370 0.009 220 4250 0.008 130 11680 0.013 610 4 7170 0.013 370 4780 0.011 210 3180 0.010 120 8760 0.017 590 5 5730 0.016 370 3820 0.014 210 2550 0.012 120 7010 0.021 580 6 4780 0.019 360 3180 0.016 210 2120 0.014 120 5840 0.025 580 THYRPCHOON 8 3580 0.025 360 2390 0.021 200 1590 0.019 120 4380 0.033 570 10 2870 0.032 370 1910 0.027 210 1270 0.024 120 3500 0.042 580 12 2390 0.040 380 1590 0.034 220 1060 0.030 130 2920 0.052 610 TSUYPHHMOIONIN 14 2050 0.047 390 1360 0.040 220 910 0.035 130 2500 0.061 610 16 1790 0.054 390 1190 0.046 220 800 0.041 130 2190 0.070 610 18 1590 0.060 380 1060 0.051 220 710 0.045 130 1950 0.078 610 20 1430 0.065 370 960 0.055 210 640 0.049 120 1750 0.085 590 THYLPHOON < D3 mm: ae = 0.1D C-SD-TA LFTA SUTA HDSRSIL-LHSSS/CO G2 MDTA HF VH/UP MEF ALU MEX UH HENSSD/CMOIL-LHSSSP CBUARRRBSIDE 375
