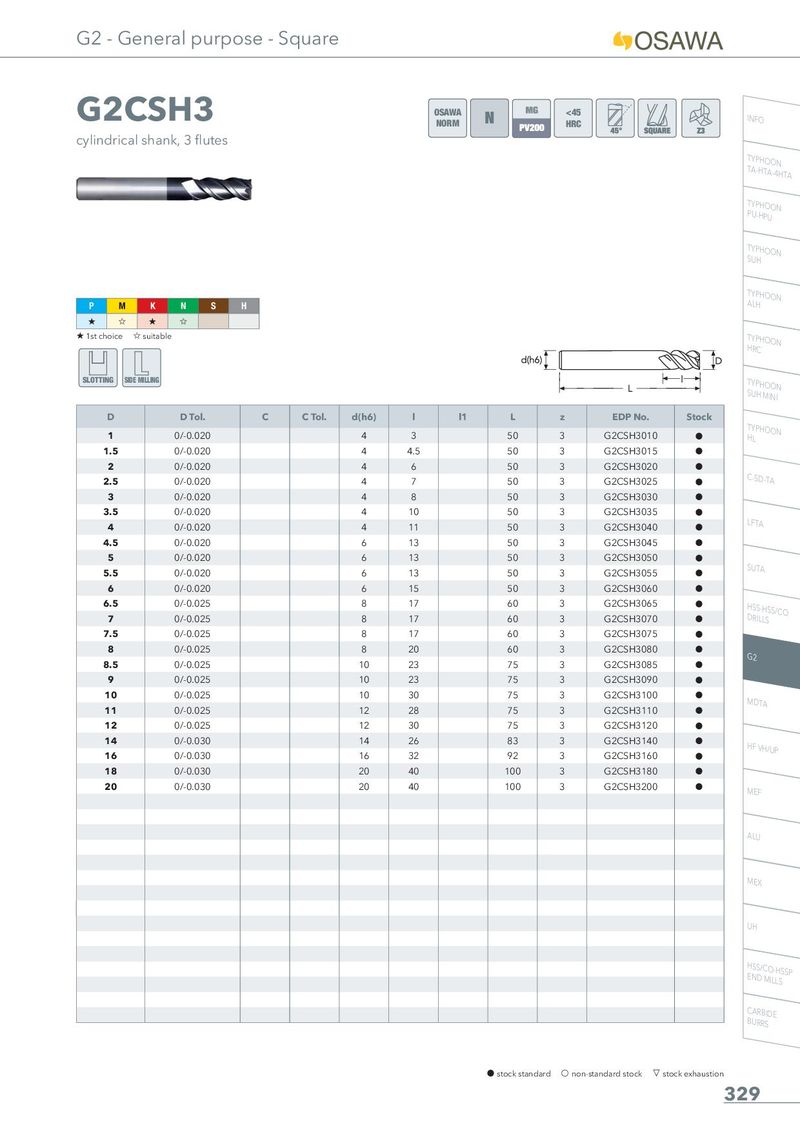

G2 - General purpose - Square G2CSH3 OSAWA <45 INFO NORM HRC cylindrical shank, 3 flutes TTYAP-HHTOAO-4NHTA TPYUP-HHPOUON TSUYPHHOON P M K N S H TAYLPHHOON + , + , + 1st choice , suitable THYRPCHOON SLOTTING SIDE MILLING TSUYPHHMOIONIN D D Tol. C C Tol. d(h6) l l1 L z EDP No. Stock 1 0/-0.020 4 3 50 3 G2CSH3010 h THYLPHOON 1.5 0/-0.020 4 4.5 50 3 G2CSH3015 h 2 0/-0.020 4 6 50 3 G2CSH3020 h 2.5 0/-0.020 4 7 50 3 G2CSH3025 h C-SD-TA 3 0/-0.020 4 8 50 3 G2CSH3030 h 3.5 0/-0.020 4 10 50 3 G2CSH3035 h 4 0/-0.020 4 11 50 3 G2CSH3040 h LFTA 4.5 0/-0.020 6 13 50 3 G2CSH3045 h 5 0/-0.020 6 13 50 3 G2CSH3050 h 5.5 0/-0.020 6 13 50 3 G2CSH3055 h SUTA 6 0/-0.020 6 15 50 3 G2CSH3060 h 6.5 0/-0.025 8 17 60 3 G2CSH3065 h HDSRSIL-LHSSS/CO 7 0/-0.025 8 17 60 3 G2CSH3070 h 7.5 0/-0.025 8 17 60 3 G2CSH3075 h 8 0/-0.025 8 20 60 3 G2CSH3080 h G2 8.5 0/-0.025 10 23 75 3 G2CSH3085 h 9 0/-0.025 10 23 75 3 G2CSH3090 h 10 0/-0.025 10 30 75 3 G2CSH3100 h MDTA 11 0/-0.025 12 28 75 3 G2CSH3110 h 12 0/-0.025 12 30 75 3 G2CSH3120 h 14 0/-0.030 14 26 83 3 G2CSH3140 h HF VH/UP 16 0/-0.030 16 32 92 3 G2CSH3160 h 18 0/-0.030 20 40 100 3 G2CSH3180 h 20 0/-0.030 20 40 100 3 G2CSH3200 h MEF ALU MEX UH HENSSD/CMOIL-LHSSSP CBUARRRBSIDE h stock standard f non-standard stock m stock exhaustion 329
