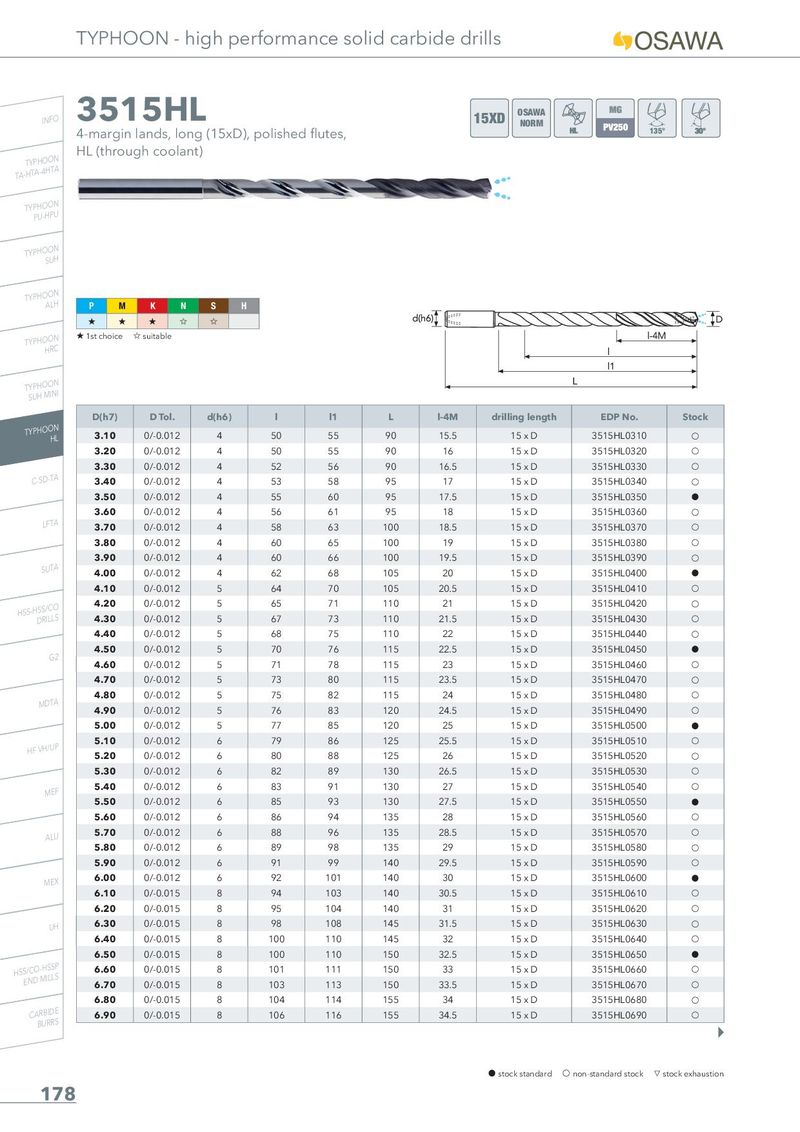

TYPHOON - high performance solid carbide drills INFO 3515HL 15XD OSAWA NORM 135° 4-margin lands, long (15xD), polished flutes, TA-THYTPAH-4OHOTNA HL (through coolant) TYPPHUO-HOPNU TYPHOSOUNH TYPHOAOLNH P M K N S H + + + , , TYPHOHORNC + 1st choice , suitable TSYUPHHOMOINNI D(h7) D Tol. d(h6) l l1 L l-4M drilling length EDP No. Stock TYPHOOHNL 3.10 0/-0.012 4 50 55 90 15.5 15 x D 3515HL0310 f 3.20 0/-0.012 4 50 55 90 16 15 x D 3515HL0320 f 3.30 0/-0.012 4 52 56 90 16.5 15 x D 3515HL0330 f C-SD-TA 3.40 0/-0.012 4 53 58 95 17 15 x D 3515HL0340 f 3.50 0/-0.012 4 55 60 95 17.5 15 x D 3515HL0350 h 3.60 0/-0.012 4 56 61 95 18 15 x D 3515HL0360 f LFTA 3.70 0/-0.012 4 58 63 100 18.5 15 x D 3515HL0370 f 3.80 0/-0.012 4 60 65 100 19 15 x D 3515HL0380 f 3.90 0/-0.012 4 60 66 100 19.5 15 x D 3515HL0390 f SUTA 4.00 0/-0.012 4 62 68 105 20 15 x D 3515HL0400 h 4.10 0/-0.012 5 64 70 105 20.5 15 x D 3515HL0410 f HSS-HDSSR/ILCLOS 4.20 0/-0.012 5 65 71 110 21 15 x D 3515HL0420 f 4.30 0/-0.012 5 67 73 110 21.5 15 x D 3515HL0430 f 4.40 0/-0.012 5 68 75 110 22 15 x D 3515HL0440 f G2 4.50 0/-0.012 5 70 76 115 22.5 15 x D 3515HL0450 h 4.60 0/-0.012 5 71 78 115 23 15 x D 3515HL0460 f 4.70 0/-0.012 5 73 80 115 23.5 15 x D 3515HL0470 f MDTA 4.80 0/-0.012 5 75 82 115 24 15 x D 3515HL0480 f 4.90 0/-0.012 5 76 83 120 24.5 15 x D 3515HL0490 f 5.00 0/-0.012 5 77 85 120 25 15 x D 3515HL0500 h HF VH/UP 5.10 0/-0.012 6 79 86 125 25.5 15 x D 3515HL0510 f 5.20 0/-0.012 6 80 88 125 26 15 x D 3515HL0520 f 5.30 0/-0.012 6 82 89 130 26.5 15 x D 3515HL0530 f MEF 5.40 0/-0.012 6 83 91 130 27 15 x D 3515HL0540 f 5.50 0/-0.012 6 85 93 130 27.5 15 x D 3515HL0550 h 5.60 0/-0.012 6 86 94 135 28 15 x D 3515HL0560 f ALU 5.70 0/-0.012 6 88 96 135 28.5 15 x D 3515HL0570 f 5.80 0/-0.012 6 89 98 135 29 15 x D 3515HL0580 f 5.90 0/-0.012 6 91 99 140 29.5 15 x D 3515HL0590 f MEX 6.00 0/-0.012 6 92 101 140 30 15 x D 3515HL0600 h 6.10 0/-0.015 8 94 103 140 30.5 15 x D 3515HL0610 f 6.20 0/-0.015 8 95 104 140 31 15 x D 3515HL0620 f UH 6.30 0/-0.015 8 98 108 145 31.5 15 x D 3515HL0630 f 6.40 0/-0.015 8 100 110 145 32 15 x D 3515HL0640 f 6.50 0/-0.015 8 100 110 150 32.5 15 x D 3515HL0650 h HSSE/NCDO-MHISLSLPS 6.60 0/-0.015 8 101 111 150 33 15 x D 3515HL0660 f 6.70 0/-0.015 8 103 113 150 33.5 15 x D 3515HL0670 f 6.80 0/-0.015 8 104 114 155 34 15 x D 3515HL0680 f CARBIDE 6.90 0/-0.015 8 106 116 155 34.5 15 x D 3515HL0690 f BURRS h stock standard f non-standard stock m stock exhaustion 178
